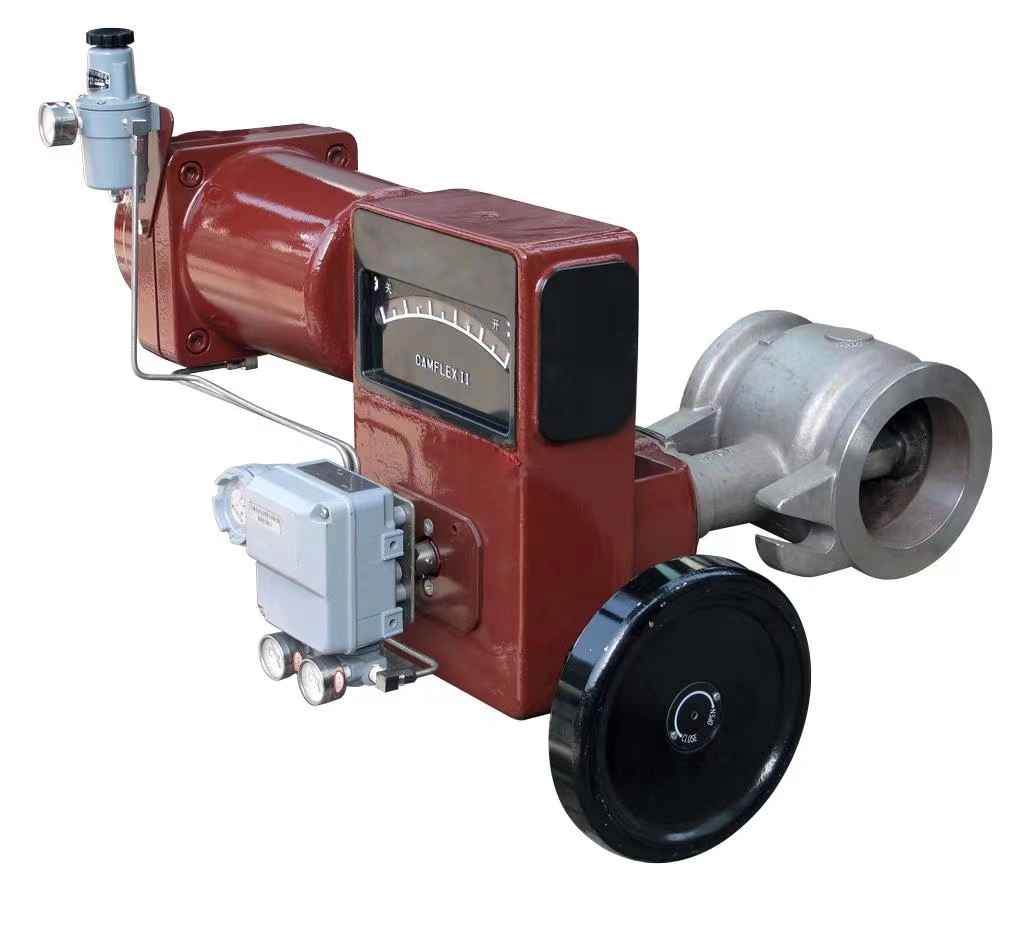

Pneumatic eccentric rotary plug control valve

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：VFR

Pneumatic eccentric rotary plug control valve Feature
Pneumatic eccentric rotary plug control valve(also called camflex control valve) is a novel structure control valve. The gyration center of plug of Pneumatic eccentric rotary plug control valve is not concentric with rotary axis, which can ensure the reliable sealing and prolong the service life with a designed eccentricity. Also Pneumatic eccentric rotary plug control valve has the characteristics of small size , large flow capacity, wide adjustable range, good sealing performance, large pressure drop applicable, wide temperature range applicable and so on. The control valve equipped with pneumatic or electric actuator can meet various requirements of fluid control which is mainly used in the occasions of large viscosity and medium with solid.

Body type:	Eccentric plug, rotary style
Size:	DN25~DN300 (1.0" to 14.0")
Pressure Class:	PN16，PN40，PN64
	ANSI 150，ANSI300，ANSI600
Characteristics:	Equal Percentage, Linear
Body Materials:	ZG230~450, ZG1Cr18Ni9, WCB, LCB, CF8M,
	CF3M
Trim materials:	Hastelloy, B&C, Inconel, Ziconium, Titanium,
	Tungsten Carbide, Ceramic
Connection:	Flanged, Wafer type
Gland packing:	PTFE, Braided PTFE, Grafoil
Leakage:	Class IV (Metal seat, standard), Class V,
	Class VI (Soft seat, zero leakage)
Actuator:	Pneumatic diaphragm actuator (VR1, VR2, VR3)
	Electric actuator (316RSA1-10, 316RSB-20,
	316RSC-50, 316RSC-60) or customized
Positioner:	High Performance Smart positioner (Explosive
	proof and HART Protocol are available)
