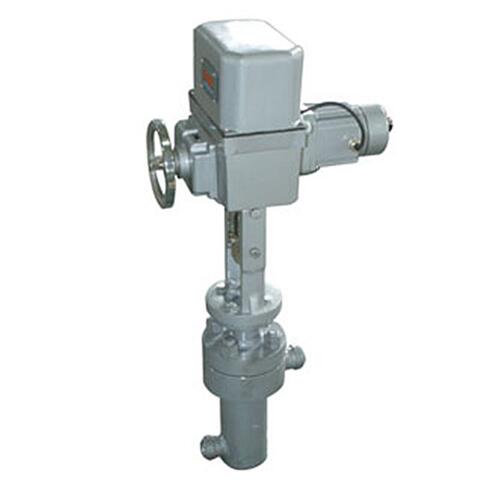

T966Y Electric multistage step-down control valve

Model:T966Y

  • Port size:DN25-50(1”-2”)
  • Pressure:PN25、32Mpa(ANSI 1500、2500LB)
  • Medium:Water,oil,steam,gas
  • Temperature :-29~420℃
  • Body material:WCB WC6 WC9 CF8 CF8M or others
  • Connection:Flanged,butt weld is optional
  • Position type:FC,FO,on-off
  • Characteristic:Linear, Equal percentage
  • Voltage:AC220,AC380
  • Other:Pneumatic or electric actuator is optional
T966Y Electric multistage step-down control valve introduction
T966Y Electric multistage step-down control valve is a novel pressure balance sleeve structure high pressure differential control valve.The sleeve and spool of the T966Y Electric multistage step-down control valve assembly is a kind of porous and cascade mixed structure, the fluid first through the sleeve window for the first stage of throttle, and then through three successive cascade throttle, allowing a large pressure difference, good sealing, the fluid channel is S streamline, the flow is large, the dynamic stability of the control valve is good.

T966Y Electric multistage step-down control valve is one of the important control valves of boiler water supply system in thermal power plant,T966Y Electric multistage step-down control valve can also be used in other industries such as petrochemical industry automatic control system to control high pressure differential fluid, T966Y Electric multistage step-down control valve can be equipped with electric actuator and pneumatic actuator.

T966Y Electric multistage step-down control valve technical parameter
Trim features: labyrinth cage trim
multi-stage throttle valve plug structure
Body type: straight-through type
angle type
Bonnet type: standard type
heat dissipation type
Flow characteristic: equal percentage
linear
quick open
control valve Size: DN25-50(1”-2”)
Pressure class: PN25、32Mpa(ANSI 1500、2500LB)
Leakage class: ASME B16.104 Ⅴ(standard type metal seat)
Pipe connection type: flange type butt welding type
Applicable temperature range: less than 420C°
Actuator type: pneumatic diaphragm actuator
pneumatic piston actuator
electric actuator
