Thermostatic temperature control valve for heating and cooling

Model:ZZWP

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Position type:Automatic control
  • Characteristic:Simple structure,cheap price
  • Voltage:/
  • Other:Electric type with PID is more accurate
Thermostatic temperature control valve Operating principle :
Thermostatic temperature control valve for heating and cooling use the principle of liquid heated expansion and incompressible liquid to realize automatic regulation. The control function of Thermostatic temperature control valve for heating and cooling is proportional regulation.When the temperature of the controlled medium changes, the volume of the temperature-sensitive liquid in the sensor expands or contracts.When the temperature of the controlled medium is higher than the set value, the temperature-sensitive liquid expands and pushes the spool down to close the Self acting temperature control valve, reducing the flow of the thermal medium.When the temperature of the controlled medium is lower than the set value, the temperature-sensitive liquid shrinks, and the return spring pushes the Thermostatic temperature control valve core to open, realizing the temperature balance control.On the contrary, the cooling valve opens above the temperature setting value and closes below the temperature setting value.Three - way valve an inlet, two outlets for the shunt, two inlet an outlet for the confluence.So as to realize automatic control of temperature.

Thermostatic temperature control valve Structure :

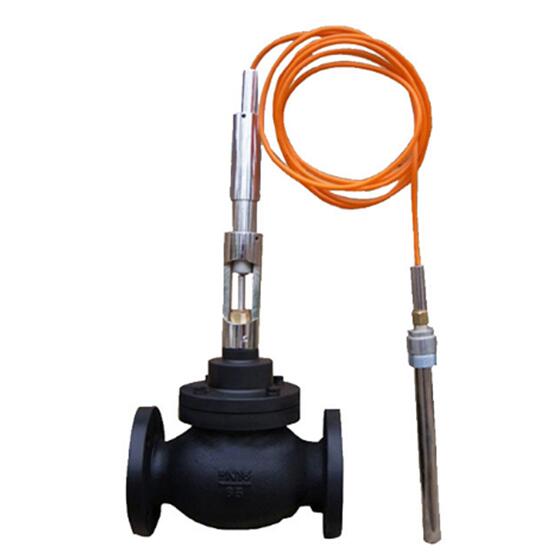

Thermostatic temperature control valve


1. Valve body  2. Heat insulation rack  3. Actuator   4. Temperature scale   5. Temperature-regulating hole   6, catheter    7, temperature-sensing bag, pressure plug and mother    8. Temperature-sensing bag

Thermostatic temperature control valve for heating and cooling table:
Used for domestic hot water supply 30-90℃
Used for heating and central air conditioning 40-100℃
Used for deaerator and other production process 80-110℃

Heating type Thermostatic temperature control valve technical performance:
Material Body: ductile iron, cast steel, stainless steel Heating type self-operated temperature control valve
  Stem/Trim: 304 stainless steel
  Temperature sensing package: 304 stainless steel
Size(DN) Thread type(15-65)mm、Flange type (15-200)mm
Pressure(PN) 1.6-2.5MPa
Work Temp. -20-350℃
Temp. Range 28℃-110℃
Tube Length Normal: 3.2 m(Customized: 5-12m)
Medium Steam,Hot Water,Hot oil
Control Accuracy ± 2℃(Circulatory system)
 ± 5℃(Uncirculatory system)

Heating type Thermostatic temperature control valve installation:
Heating type Thermostatic temperature control valve installation

Cooling type Thermostatic temperature control valve technical performance:
Material Body: ductile iron, cast steel, stainless steel Cooling type self-operated temperature control valve
  Stem/Trim: 304 stainless steel
  Temperature sensing package: 304 stainless steel
Size(DN) Flange type (15-200)mm (Thread customized)
Pressure(PN) 1.6-2.5MPa
Work Temp. -20-350℃
Temp. Range 28℃-110℃
Tube Length Normal: 3.2 m(Customized: 5-12m)
Medium Water, oil, coolant, refrigerant
Control Accuracy ± 2℃

Cooling type Thermostatic temperature control valve installation:
Cooling type Thermostatic temperature control valve installation
