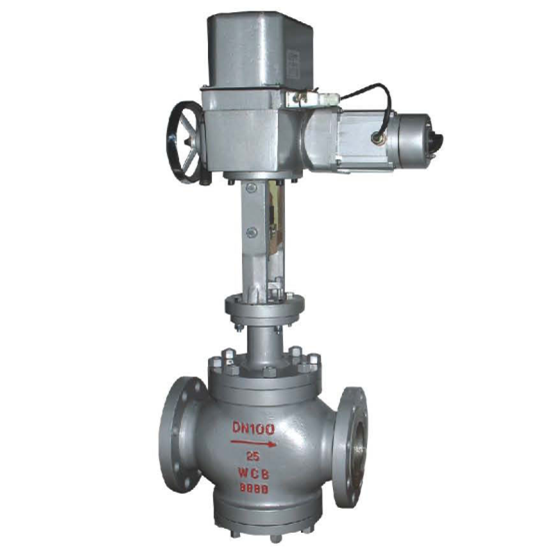

Model：ZAZM
| Electric control valve Body type: |
straight through casting globe type |
| Spool type: | balanced sleeve plug type |
| Nominal size: | DN25~400,、 NPS 1〞~ 16〞 |
| Nominal pressure: | PN16 ~ 100、 CLASS 150LB ~ 600LB |
| Connection: flange: | FF、RF、MF、RTJ |
| Welding: | SW、BW |
| Flange dimension: | According to to IEC 60534 |
| ZAZM Sleeve electric control valve Bonnet type: | Ⅰ:standard type（-20℃~230℃） Ⅱ:Radiator type: （-45℃~ high than 230℃ occasion） Ⅲ:Low temperature extended type（-196℃~ -45℃） Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type |
| Packing: | V type PFTE packing, flex. graphite packing, etc. |
| Gasket: | Metal graphite packing |
| Actuator: | Electric: DZK series actuator. |
| Component name | Control Valve Material |
| Body/Bonnet | WCB/WCC/WC6/CF8/CF8M/CF3M |
| Valve spool/Seat | 304/316/316L(overlaying stellite alloy) |
| Packing | Normal:-196～150℃ is PTFE,RTFE,>230℃ is flexible graphite |
| Bellows | 304/316/316L |
| Gasket | Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket |
| Control valve stem | 2Cr13/17-4PH/304/316/316L |
| Electric control valve Flow characteristic | Linear, Equal percentage, quick open | |
| Allowable range | 50: 1 (CV<6.3 30: 1) | |
| Rated Cv value | Percentage CV1.6~630 ，linear CV1.8~690 | |
| Electric control valve Allowable leakage | Metal seal: IV grade（0.01% rated capacity） Soft seal: VI grade（foam grade） Leakage standard: GB/T 4213 |
|
| ZAZM Sleeve electric control valve Performance | ||
| Intrinsic error (%) | ±1.0 | |
| Return difference(%) | ≤1.0 | |
| Dead zone(%) | ≤1.0 | |
| Difference from beginning to end point(%) | ±2.5 | |
| Rated travel difference(%) | ≤2.5 | |
| Special test | Material penetration flaw detection (PT), radiator test (RT), flow characteristic test, low temperature test. |
| Special treatment | Trim nitrogen treatment, seat hard alloy treatment. |
| Special rinse | Degreasing and dehydration treatment |
| Special condition | Special piping or connection, vacuum condition, S.S fastener, special coating. |
| Special dimension | Customized face to face length or dimension |
| Test and inspection | Third party test report |
| Electric control valve Type\ Method | Electric actuator |
| DKZ series | |
| Intelligent integrated type | |
| Usage | Regulating |
| Air supply pressure or Power supply voltage | Power: AC 200V±10% 50Hz Or Power: AC 380V±10% 50Hz |
| Connector | Normal type: cable inlet 2-PF(G1/2〞) Explosive proof: Protection jacket PF(G3/4〞) |
| Direct action | Input signal increase, stem descend, valve close. |
| Reaction | Input signal increase, stem ascend, valve open. |
| Input signal | Input/output4～20mA.DC |
| Lag | ≤0.8%FS |
| Linear type | ≤+1%FS |
| Environmental temperature | Standard type: -10℃～+60℃ With space heater : -35℃～+60℃ Explosive proof: -10℃～+40℃ |
| Electric control valve Accessories | Space heater (normal type) Non-standard accessories, need special customized notes. |
|
Nominal diameterDN |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
Rated flow coefficient Kv |
11/10 |
27/25 |
44/40 |
69/63 |
110/100 |
176/160 |
275/250 |
440/400 |
690/630 |
940/850 |
1200/1050 |
1400/1225 |
1600/1400 |
|
Nominal pressurePN MPa |
1.6 4 6.4 |
||||||||||||
|
match DKZ actuator |
DKZ-4200 |
DKZ-4300 |
DKZ-5400 |
DKZ-5500 |
DKZ-5600 |
||||||||
|
match Cepai actuator |
A+Z64 |
A+Z160 |
|||||||||||
|
Rated travel mm |
16 |
25 |
40 |
60 |
100 |
||||||||
|
Flow characteristic |
Equal percentage linear |
||||||||||||
|
Action mode |
Input signal increase, valve close or opposite |
||||||||||||
|
Temperature range |
Normal temperature:-20～200℃ thermal Fin type:-60～450℃ |
||||||||||||
Note: Large size single-seat control valve can be customized according to user requirement
