Stainless steel pneumatic eccentric butterfly valve

Model:

  • Port size:DN50~2000
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:CF8 CF3 CF8M CF3M or others
  • Connection:Flanged or wafer
  • Position type:On-off type
  • Characteristic:Triple eccentric metal seat
  • Voltage:/
  • Other:Different accessories is optional
Stainless steel pneumatic eccentric butterfly valve introduction:
Stainless steel pneumatic eccentric butterfly valve consists of pneumatic actuator and stainless steel triple eccentric butterfly valve, according to different generally can be divided into flange or wafer connection, Stainless steel pneumatic eccentric butterfly valve material: 304 316 304L 316L stainless steel and so on, the body part adopts three eccentric structure, butterfly valve disc and seal mechanism design is unique, Stainless steel pneumatic eccentric butterfly valve has excellent cutting performance and durability, has cut off, adjust the dual function at the same time, long life, energy-efficient and butterfly valve.Because the Stainless steel pneumatic eccentric butterfly valve closing is completed by torque, that is, the greater the valve closing torque, the better the sealing of the seat.

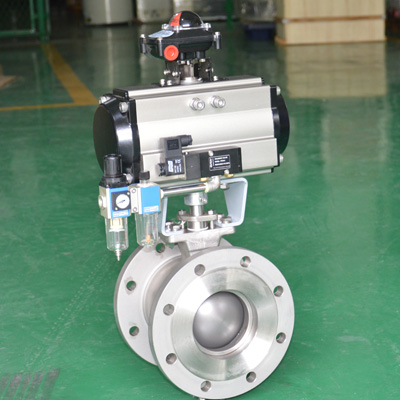

Pneumatic eccentric butterfly valve

Stainless steel pneumatic eccentric butterfly valve application range:
Stainless steel pneumatic eccentric butterfly valve is suitable for water, sewage, sea water, air, steam, gas, combustible gas, corrosive medium, oil and food and other media, the highest working temperature can reach 550℃.Stainless steel pneumatic eccentric butterfly valve widely used in petroleum, chemical, metallurgy, electricity, food, medicine, water supply and drainage, gas transport and other different media pipeline, do switch off or adjust the medium flow parameters.

Stainless steel pneumatic eccentric butterfly valve performance advantages:
1. The use of three-dimensional eccentric sealing structure, seat and butterfly plate between the wear is small, and the sealing surface wear resistance, prolong the service life;
2. According to the connection method, it can be divided into flange,wafer,lug connection, which can be used in different process pipelines;
3. Large diameter butterfly valve butterfly plate can be used quilted structure, with high strength, large flow area, small flow resistance;
4,The use of bidirectional pressure three eccentric multi-level hard sealing structure, with bidirectional sealing function, installation is not limited by the flow of media, also not affected by the space position, can be installed in any direction;
5. With metal hard seal and elastic seal double advantages, no matter in the case of low and high temperature, have excellent sealing performance, corrosion resistance, long service life and other characteristics.

Stainless steel pneumatic eccentric butterfly valve Technical parameters:
Nominal diameter: DN50 ~ DN2000(MM)
Nominal pressure:PN1.0, 1.6, 2.5, 4.0MPa
Connection form :wafer type, lug type,flange type
Seal form: three eccentric metal hard seal
Air supply pressure: 0.4~ 0.7mpa
Action range 0 ~ 90°
The leakage amount is 10-4 of Kv value according to GB/ t4213-92
Body material: carbon steel, 304, 316 stainless steel
Disc material: carbon steel, 304, 316 stainless steel
Basic error band locator: less than ±2% of the total stroke
Applicable temperature: carbon steel: -29℃ ~ 400℃ stainless steel: -40℃ ~ 450℃
Actuators: GT, AT, AW series single action, double action pneumatic actuators
Control mode switch two mode (gas on and gas off), adjustable (4-20ma analog control)

Stainless steel pneumatic eccentric butterfly valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
Pneumatic butterfly valve accessories
