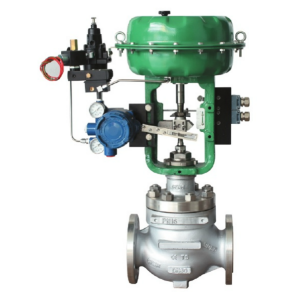

Pneumatic actuated globe control valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-196~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange:JB79 GB9113 ANSI B16.5
  • Position type:FC,FO,on-off
  • Characteristic:Linear, Equal percentage, quick open
  • Voltage:Depond on accessories
  • Other:Different brand positioner is optional
  • Pneumatic actuated globe control valve Feature

    Pneumatic actuated globe control valve adopts top guide structure, small size, light weight,compact design, competitive price;S streamline hydrodynamic fluid path, small pressure differential loss, large flow;Pneumatic actuated globe control valve is compact structure, wide adjustable  range, high accuracy of flow control;Large guide area for valve spool, with excellent anti vibration feature;Pneumatic actuated globe control valve is equipped with multi-spring diaphragm actuator, with small size &large output force feature;Pneumatic actuated globe control valve is applicable for high temp, low temp & small pressure differential of front-after valve with requirement of high closure performance and reliability.
  • Pneumatic actuated globe control valve Specification

    Pneumatic control valve
    Body type:
    straight through casting globe type
    Spool type: non-balanced single seat plug type
    Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic actuated globe
    control valve Bonnet type:
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Pneumatic control valve Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
  • Pneumatic actuated globe control valve Structure

  • ZJHP Pneumatic single seat control valve Material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic actuated globe control valve Performance

    Pneumatic single seat control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Pneumatic control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Pneumatic actuated globe control valve Performance
    Intrinsic error % ±1.5
    Return difference, % ≤1.5
    Dead zone, % ≤0.6
    Difference from beginning to end point, % ±2.5
    Rated travel difference, % ≤2.5
  • Pneumatic actuated globe control valve Special requirement

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • Pneumatic actuated globe control valve actuator parameter

    Control Valve Type\ Method Pneumatic diaphragm actuator
    ZH23~ZH56
    Multi-spring type
    Pneumatic control valve Usage Regulating type, ON-OFF type
    Air supply pressure or Power supply voltage Air supply pressure (Spring range)
    140(20~100)Kpa G
    240 (40~200) Kpa G
    280 (80~240) Kpa G
    Connector Air pipe connector: RC1/4
    Direct action Pressure increase, stem descend, valve close.
    Reaction Pressure increase, stem ascend, valve open.
    Input signal 40~20mA.DC(with positioner)
    Lag ≤1%FS(with positioner)
    Linear type 2%FS(with positioner)
    Environmental temperature -10℃~+70℃
    Pneumatic control valve
    Accessories
    E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
    Non-standard accessories, need special customized notes.
  • Pneumatic actuated globe control valve technical parameter

    Seat diameter(mm) 10 12 15 20 25 32 40 50 65 80 100 125 150 200
    Rated Cv Percentage 1.6 2.5 4.0 6.3 10 16 25 40 63 100 160 250 400 630
    Linear 1.8 2.8 4.4 6.9 11 17.6 27.5 44 69 110 176 275 440 690
    Nom. size Travel Option flow characteristic Cv. (★standard  ●recommanded  ○customized)
    DN20 16mm
    DN25
    DN32 25 mm
    DN40
    DN50
    DN65 40mm
    DN80
    DN100
    DN125 60mm
    DN150
    DN200
    Pneumatic actuator
    Diaphragm area, Ae(cm2)
    ZHA/B-22 ZHA/B-23 ZHA/B-34 ZHA/B-45
    350 350 560 900
    Action Spring range Metal sealing allowable pressure difference (MPa)
    Air open 20-100KPa 4.46 3.09 1.98 1.16 0.7 0.44 0.28 0.18 0.17 0.11 0.07 0.07 0.05 0.03
    40-200 KPa 6.4 6.4 5.94 3.34 2.14 1.31 0.84 0.53 0.51 0.33 0.21 0.22 0.15 0.09
    80-240 KPa 6.4 6.4 6.4 6.4 4.99 3.05 1.95 1.25 1.18 0.78 0.5 0.51 0.36 0.21
    Air close 20-100KPa 6.4 6.19 3.96 2.23 2.14 0.87 0.56 0.35 0.34 0.22 0.14 0.15 0.1 0.06
    40-200 KPa 6.4 6.4 6.4 6.4 6.4 5.86 3.64 2.3 2.21 1.43 0.91 0.95 0.66 0.37
    80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 5.04 3.18 3.06 1.98 1.26 1.32 0.92 0.52
