Electric Actuator Actuated Gate Valve

VALVE

contact us

SHANGHAI HUIXUAN VALVE

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：1/2"~24" (DN15~DN600)
Pressure：PN16-PN420 CL150-CL2500
Medium：Water,steam,oil,gas,etc.
Temperature :-40～450℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Flange or others
Position type：
Characteristic：On-off type or regulating type
Voltage：220V,380V,400V or others
Other：

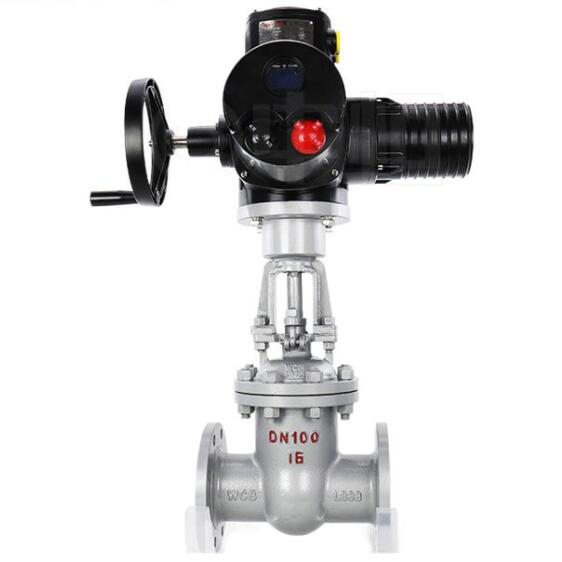

Electric Actuator Actuated Gate Valve is made of gate valve and on off function or regulating function electric actuator, 220V, 380V or other voltage is optional. Electric Actuator Actuated Gate Valve is an ordinary gate valve that operated by an Motorized actuator. Electric Actuator Actuated Gate Valve is widely used for various applications like a power plant, shipyard, oil and gas, wastewater treatment, paper and pulp,etc.

Electric Actuator Actuated Gate Valve speicification:

Pressure	16bar, 25bar, 40 bar, 64bar, Class 150, Class 300, 10K, 20K
Temperature	-40～450℃ according to the material
Medium	Water, Oil, Gas, Pulp, Mud, etc
Material	Cast steel or Stainless Steel 304/316/316L
Connection	Flanged (ANSI, JIS, DIN)
Size range	DN15-DN1200

Electric Actuator Actuated Gate Valve feature:
1. A one-stop valve solution for start and stop the flow rate
2. Weather-proof aluminum alloy multi-turn actuator for outdoor use
3. Multi-turn actuator to help to control locally or remotely
4. Offering multiple options of Fieldbus to help to connect with your control system with a right Fieldbus
5. Available in WCB and stainless steel valve material for your choice

Electric Actuator Actuated Gate Valve electric actuator parameter:

Power supply	conventional: single phase 220v, three phase 380v
Power supply	special: three phase 400v, 415v, 660v(50Hz, 60Hz)
Working environment	Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized)
Working environment	Relative humidity: 95% (at 25 ° C)
Protection level	Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Working system	short time 10 minutes (15-60 minutes for special order)

Electric Actuator Actuated Gate Valve electric actuator specification

Model	Torque(Nm)	Maximum diameter of the valve stem(mm)	Manual Ratio	Output Rotation Speed(r/min)	Motor Power(KW)	Current(A)	Refer Weight(kg)
Z5	50	28	1:1	12/36	0.12/0.18	0.57/0.83	28
Z10	100	28	1:1	18/36	0.25/0.37	1.03/1.38	45
Z15	150	28	1:1	18/36	0.37/0.55	1.38/2.2	46
Z20	200	40	1:1	18/36	0.37/0.75	1.38/2.62	56
Z30	300	40	1:1	18/36	0.55/1.1	2.2/4	58
Z45	450	48	1:1/20:1	24/36	1.1/1.5	4/4.12	110
Z60	600	48	1:1/20:1	24/36	1.5/2.2	4.12/5.25	112
Z90	900	60	1:1/20:1	24/36	2.2/3	5.25/7.9	140
Z120	1200	60	1:1/20:1	24/36	3/4	7.9/8.87	142
Z180	1800	70	22.5:1	18/36	4/7.5	8.87/15.6	250
Z250	2500	70	22.5:1	18/36	5.5/10	12.05/20.5	255
Z350	3500	80	20:1	18/24	7.5/10	15.6/20.5	330
Z500	5000	80	20:1	18/24	10/15	20.5/26.6	350

Note: If the user requires, we could provide the products with other rotation speed: 12/18/24/30/36/42/48/60(r/min)
