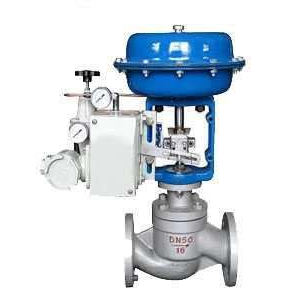

Pneumatic liquid level control valve

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Pneumatic liquid level control valve Feature

Pneumatic liquid level control valve is used for level control in the industry system. Pneumatic liquid level control valve compact valve body, less component, esay to maintain. The metal valve plug of Pneumatic liquid level control valve is suitable for various work situation, comply with the standard of IV level leakage, and soft seal valve plug achieve the standard of VI level leakage. The pneumatic control valve body designed according to the principles of fluid mechanics to be low rsistance equal section flow channel, rated flow coefficient increases 30%. Wide adjustable scope, inherent adjustable ratio is 50: 1. The Pneumatic liquid level control valve actuator use multiple springs structure,light weight.

Pneumatic control valve Body type:	straight through casting globe type
Spool type:	non-balanced single seat plug type
Nominal size:	DN20~200,、 NPS 3/4〞~ 8〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Pneumatic control valve Bonnet type:	Ⅰ:standard type（-20℃~230℃） Ⅱ:Radiator type: （-45℃~ high than 230℃ occasion） Ⅲ:Low temperature extended type（-196℃~ -45℃） Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Pneumatic control valve Actuator:	Pneumatic: multi-spring diaphragm actuator, piston type actuator.

Component name	Control Valve Material
Body/Bonnet	WCB/WCC/WC6/CF8/CF8M/CF3M
Valve spool/Seat	304/316/316L(overlaying stellite alloy)
Packing	Normal:-196～150℃ is PTFE,RTFE,>230℃ is flexible graphite
Gasket	Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
Diaphragm Cover	Normal:Q235,Special:304
Diaphragm	NBR with reinforced polyester fabric
Spring	Normal:60Si2Mn,Special:50CrVa
Control valve stem	2Cr13/17-4PH/304/316/316L

Pneumatic linear control valve Flow characteristic	Linear, percentage, quick open
Allowable range	50: 1 (CV<6.3 30: 1)
Rated Cv value	Percentage CV1.6~630 ，linear CV1.8~690
Pneumatic control valve Allowable leakage	Metal seal: IV grade（0.01% rated capacity） Soft seal: VI grade（foam grade） Leakage standard: GB/T 4213
Pneumatic control valve Performance
Intrinsic error %		±1.5
Return difference, %		≤1.5
Dead zone, %		≤0.6
Difference from beginning to end point, %		±2.5
Rated travel difference, %		≤2.5
