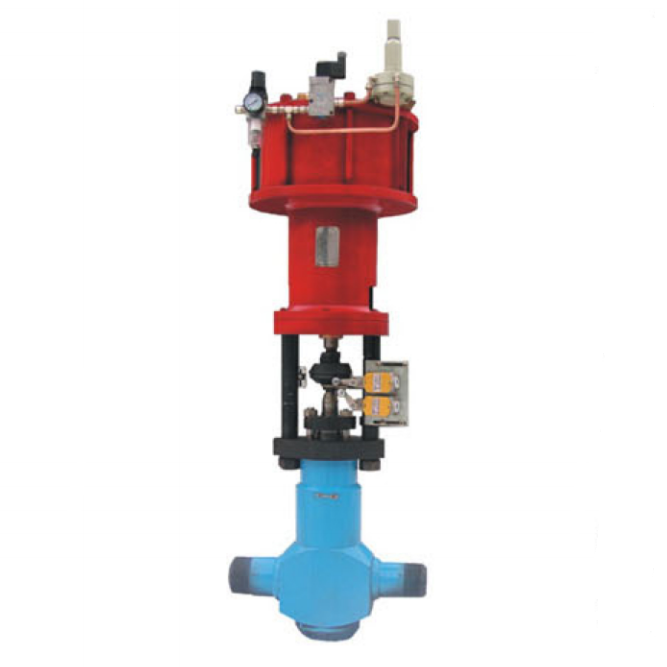

Pneumatic main steam trap control valve

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Pneumatic main steam trap control valve feature
Pneumatic main steam trap control valve is suitable for controlling high temperature and high pressure saturated water in the drain systems of main steam and reheat steam pipes in thermal power plants. The tandem type fluid channel is continuously changing the fluid direction, so that fluid velocity is controlled at about 30m/s and cavitation damage is avoided. The throttling part of Pneumatic main steam trap control valve is separable from the sealing face to effectively protect the sealing face. The Pneumatic main steam trap control valve trim surface is subjected to hardening treatment, reaching a hardness of about HRC70. It is featured by good erosion resistance and long service life. The Pneumatic main steam trap control valve can be pneumatically or electrically controlled.

Trim features：	labyrinth cage trim multi-stage throttle valve plug structure
Body type：	straight-through type angle type
Bonnet type：	standard type heat dissipation type
Flow characteristic：	equal percentage linear quick open
Size：	DN25-50(1”-2”)
Pressure class：	PN25、32Mpa（ANSI 1500、2500LB）
Leakage class：	ASME B16.104 Ⅴ（standard type metal seat）
Pipe connection type：	flange type butt welding type
Applicable temperature range：	less than 560C°
control valve Actuator type：	pneumatic diaphragm actuator pneumatic piston actuator electric actuator
