CS11H Threaded Free Float Steam Trap

VALVE

contact us

SHANGHAI HUIXUAN VALVE

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：CS11H-16C CS11H-25C CS11H-40C

Port size：DN15-DN50
Pressure：PN10-PN40 CL150-CL300
Medium：Water,steam,oil,gas
Temperature :-29～350℃
Body material：WCB,CF8,CF8M,etc.
Connection：Threaded end or others
Position type：
Characteristic：
Voltage：
Other：China Free Float Steam Trap Manufacturer

China Free Float Steam Trap Manufacturer, factory and supplier. CS11H Threaded Free Float Steam Trap is an automatic valve, especially for steam equipment with low pressure, low drainage, and high stability of temperature. CS11H Threaded Free Float Steam Trap is capable of discharging condensate from steam piping networks and heating equipment and preventing steam leakage. CS11H Threaded Free Float Steam Trap is widely used in petroleum, chemical, textile, printing and dyeing, pharmaceutical, pulp and paper, food, and other industries.

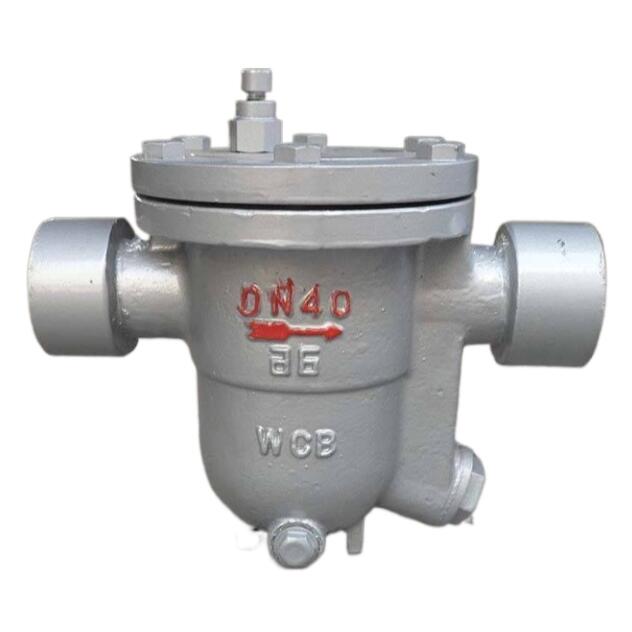

CS11H Threaded Free Float Steam Trap

CS11H Threaded Free Float Steam Trap Features

1. Ability to continuously drain stable performance, large capacity, low air leakage rate, and high back pressure rate.

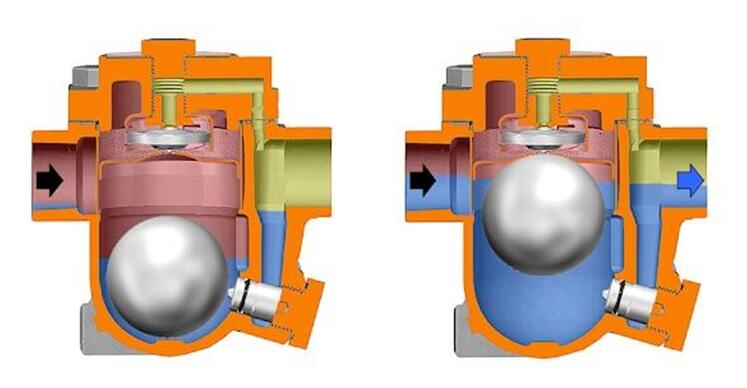

2. Stainless steel hollow free float is the main part of the valve, it adopts stainless steel ground round float ball.
3. All internal parts use stainless steel material which is corrosion resistant, wear-resistant, long service life.

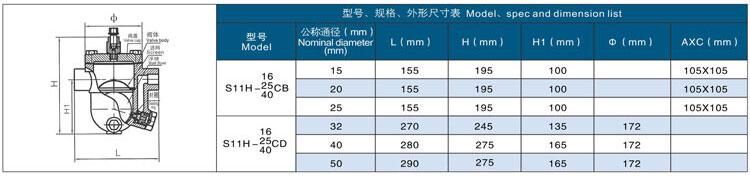

CS11H Threaded Free Float Steam Trap dimension
