Model：CS41H-16C CS41H-25C CS41H-40C

Port size：DN15-DN100
Pressure：PN10-PN40 CL150-CL300
Medium：Water,steam,oil,gas,etc.
Temperature :-29～350℃
Body material：WCB,CF8,CF8M,etc.
Connection：Flange or others
Position type：
Characteristic：
Voltage：
Other：China Free Float Steam Trap Manufacturer

China Free Float Steam Trap Manufacturer, factory and supplier. CS41H Flanged Free Float Steam Trap is an automatic valve, especially for steam equipment with low pressure, low drainage, and high stability of temperature. CS41H FlangedFree Float Steam Trap is capable of discharging condensate from steam piping networks and heating equipment and preventing steam leakage. CS41H FlangedFree Float Steam Trap is widely used in petroleum, chemical, textile, printing and dyeing, pharmaceutical, pulp and paper, food, and other industries.

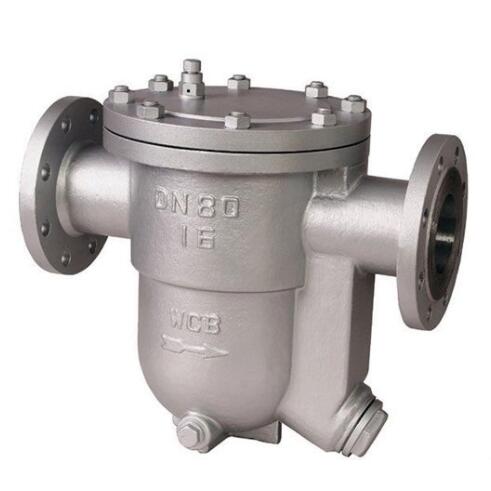

CS41H Flanged Free Float Steam Trap

CS41H Flanged Free Float Steam Trap Features

1. Ability to continuously drain stable performance, large capacity, low air leakage rate, and high back pressure rate.
2. Stainless steel hollow free float is the main part of the valve, it adopts stainless steel ground round float ball.
3. All internal parts use stainless steel material which is corrosion resistant, wear-resistant, long service life.

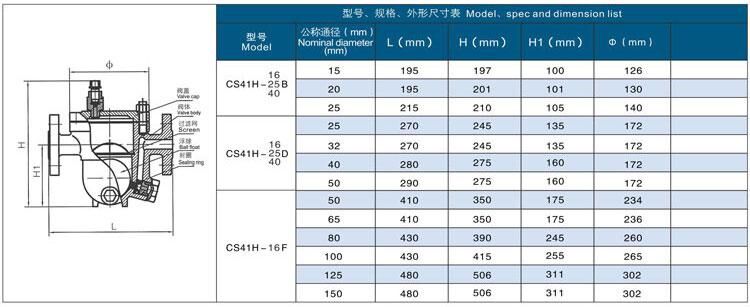

CS41H Flanged Free Float Steam Trap dimension
