DH77X H77X Dual Plate Check Valve

VALVE

contact us

SHANGHAI HUIXUAN VALVE

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：DH77X H77X

Port size：DN40-DN600
Pressure：PN10-PN25 150LB
Medium：water,etc
Temperature :-29～80℃
Body material：Cast iron,ductile iron, carbon steel, stainless steel
Connection：Wafer type
Position type：
Characteristic：Double disc, wafer type
Voltage：
Other：DH77X H77X Check Valve Manufacturer

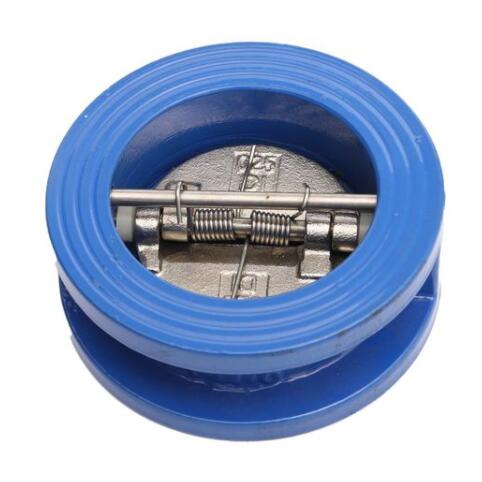

DH77X H77X Dual Plate Check Valve manufacturer, factory and supplier. DH77X H77X Dual Plate Check Valve is wafer end, spring loaded or non-spring loaded design, double plate swing type structure, DH77X H77X Dual Plate Check Valve mainly composed of body, disc (valve stem), spring and etc. The short closing stroke of disc and function of spring may strengthen closing effect and reduce the sound of water hammer and slamming .

DH77X H77X Dual Plate Check Valve material
1) Body and disc: carbon steel, stainless steel or others
2) Stem: Stainless steel
3) Torsion spring: Stainless steel
4) Seal surface: Rubber or others

DH77X H77X Dual Plate Check Valve Specification:

Medium applicable	Water, Oil etc.
Main material	Cast iron, Ductile ironI, WCB, WCC, SS304, SS316, CF8 etc
Temperature applicable	≤80ºC
Nominal Pressure	PN1.0--4.0Mpa or Class150
Nominal Diameter	DN40-DN1200
Flange Dimension	ASME B16.5, BS4504, ISO2531, ISO7005 and other standards conforming to the requirements
Face to Face Length	API594, BS5155, ISO5752, DIN3352 or others.
