Model：H76X

Port size：DN40-DN1200
Pressure：PN10-PN40 150LB
Medium：water,etc
Temperature :-29～80℃
Body material：Cast iron,ductile iron, carbon steel, stainless steel
Connection：Wafer type
Position type：
Characteristic：Spring loaded, double disc design
Voltage：
Other：H76X check valve manufacturer and supplier

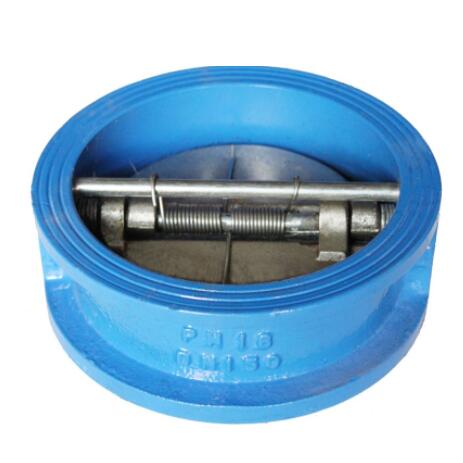

H76X Butterfly double disc check valve manufacturer, factory and supplier. H76X Butterfly double disc check valve is wafer type, spring loaded, doubledisc design, H76X Butterfly double disc check valve mainly composed of boby, disc(valve stem), spring and etc. The short closing stroke of disc and function of spring may strengthen closing effect and reduce the sound of water hammer and slamming .

H76X Butterfly double disc check valve material
1) Body and disc: Brass, carbon steel, stainless steel, Hascrome
2) Stem: Stainless steel
3) Torsion spring: Stainless steel
4) Seal surface: Buna-n rubber, stainless steel, gathered four fluorine
Ethylene, and nylon plastics.

H76X Butterfly double disc check valve Specification:

Medium applicable	Water, Oil etc.
Main material	Cast iron, Ductile ironI, WCB, WCC, SS304, SS316, CF8 etc
Temperature applicable	≤80ºC
Nominal Pressure	PN1.0--4.0Mpa or Class150
Nominal Diameter	DN40-DN1200
Flange Dimension	ASME B16.5, BS4504, ISO2531, ISO7005 and other standards conforming to the requirements
Face to Face Length	API594, BS5155, ISO5752, DIN3352 or others.
