Electric actuated motorized 4 way ball valve introduction:
Electric actuated motorized 4 way ball valve is the 4-way 4-side ball valve of "X" type flow channel, rotating 90° can switch the flow direction of the two media at the same time, that is, convenient and rapid, to achieve the multi-purpose effect of a valve.Electric actuated motorized 4 way ball valve replaced the previous four valve complex operation, to remove the space occupied by the large, high cost, cumbersome operation and other problems, Electric actuated motorized 4 way ball valve can achieve reverse water supply switch, every rotation of 90 degrees, water supply mode can be switched once, simple and convenient operation.



Electric actuated motorized 4 way ball valve features:
The two channels of the Electric actuated motorized 4 way ball valve sphere are arranged in the shape of X, and the four channels are all arranged on the equatorial circumferential section of the sphere. When the sphere rotates 90 clockwise, the two opposite channels can be interacted.In the power station system, it is called the two-way water supply rotary valve (also known as the air commutator switching valve in the petrochemical system), Electric actuated motorized 4 way ball valve is suitable for the circulating system of liquid, gas, dust, slurry and solid particle medium, such as the reverse-reverse circulating water supply system of the power station unit coolers.

Electric actuated motorized 4 way ball valve Technical parameters :
Nominal diameter: DN15 ~ DN300(mm)
Nominal pressure::  PN16 ~ 100,Class 150 ~ Class 600
Connection form: flange type, thread connection
Spool form:X shape ball spool
Electric control: (with hand wheel)
Structural form: 4 way
Supply voltage:AC110V, AC220V, AC380V (other customized DC24, etc.)
Body material: WCB, 304, 316, 316L or thers
Ball core material:A105, F304, F316, F316L or thers
Adjustable range: 15-60 seconds (customized)
Applicable temperature: -40℃ ~ 450℃
Actuator switch type: (switch two mode), intelligent adjustment (4-20ma analog signal control), optional explosion-proof series

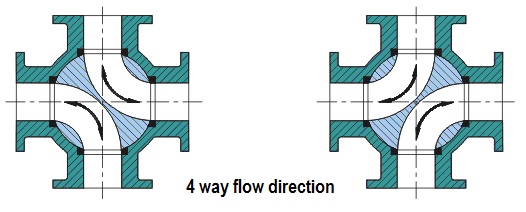

Electric actuated motorized 4 way ball valve direction:
