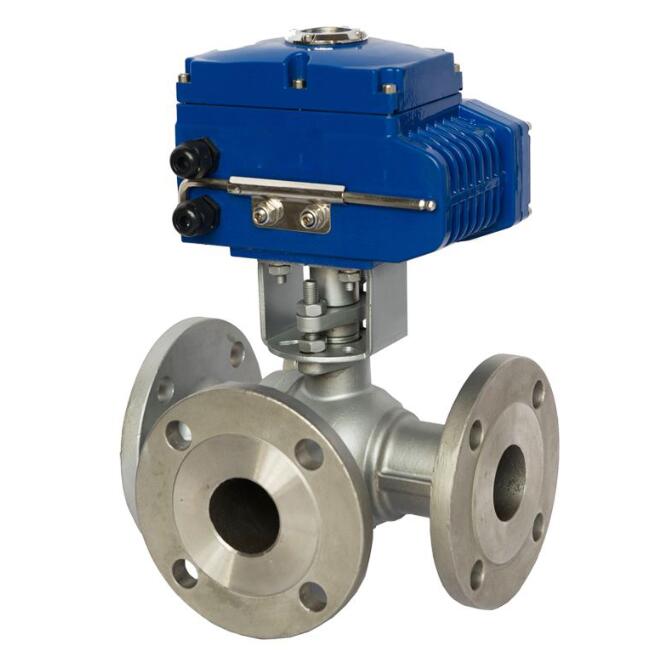

Electric stainless steel 3 way ball valve introduction:
Electric stainless steel 3 way ball valve is a kind of three-way change-over regulating ball valve that can reverse, diverge or merge the three pipeline media. Generally, Electric stainless steel 3 way ball valve has flange or internal thread connection mode. According to the requirements of different flow direction change-over, the ball core can be designed as L port and T port structure, so as to realize the control form of various combinations of fluid in the pipeline.The Electric stainless steel 3 way ball valve can not only switch or cut off the two mutually perpendicular channels, but also close any channel, so that the other two channels are connected, and flexibly control the mixing or shunting of pipeline intermediaries.The actuators with different functions are selected to meet the requirements of different working conditions. Electric stainless steel 3 way ball valve is widely used for double-cut or proportional adjustment in industrial systems such as electric power, environmental protection, water supply, steam and mechanical equipment.

Electric stainless steel 3 way ball valve is generally divided into L type structure and T type structure according to the switching requirements of flow direction.The L type electric 3 way ball valve is suitable for the switching of medium flow direction, which can make the two mutually perpendicular channels connected with each other. The T type electric 3 way ball valve is suitable for the diversion, confluence or switching of medium flow direction

Electric stainless steel 3 way ball valve Advantages:
1.Electric stainless steel 3 way ball valve is equipped with the functions of switching off and intelligent proportional adjustment, which can not only cut off the fluid, but also adjust the parameters such as pressure, flow and temperature.
2. With many functions, Electric stainless steel 3 way ball valve can be distributed and reversed. Electric 3 way ball valve is suitable for ratio adjustment and control of liquid rest, gas, steam and other media.
3. Wide range of use, a multi-purpose valve, any port can be used as an entrance without leakage, Electric 3 way ball valve can be made into an L-shaped port, can also be made into a T-shaped port.
4. Electric stainless steel 3 way ball valve can be divided into electric flange tee ball valve and electric internal thread tee ball valve to meet the connection of pipelines in different working conditions.

Electric stainless steel 3 way ball valve Technical parameters :
Nominal diameter: DN15 ~ DN200(mm)
Nominal pressure::  PN1.6, 2.5, 4.0, 6.4MPa,Class 150 Class 300
Connection form: flange type, thread connection
Spool form: O-ball spool
Electric control: (with hand wheel)
Structural form: T port or L port
Supply voltage:AC110V, AC220V, AC380V (other customized DC24, etc.)
Body material: carbon steel WCB, stainless steel 304, 316, 316L
Ball core material: carbon steel WCB, stainless steel 304, 316, 316L
Adjustable range: 15-60 seconds (customized)
Applicable temperature: -40℃ ~ 450℃
Actuator switch type: (switch two mode), intelligent adjustment (4-20ma analog signal control), optional explosion-proof series
