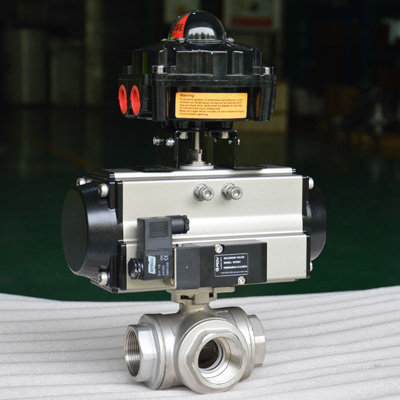

Female thread pneumatic 3 way ball valve introduction
Female thread pneumatic 3 way ball valve is female connection,which is divided into L port pneumatic 3 way ball valve and T port pneumatic 3 way ball valve.Female thread pneumatic 3 way ball valve is used for the direction switch of medium flow, enabling two channels that are vertical to each other connect.The Female thread pneumatic 3 way ball valve is used for diversion,convergence and flow direction switch of medium.304 316 3 way pneumatic ball valve is widely used in water supply,petrochemical,metallurgy,mining,textile,energy, papermaking,food,steel and other pipeline systems to switch the flow direction of the medium and to divert or converge.


Female thread pneumatic 3 way ball valve Performance

Type of Pneumatic Actuator	Double Acting/Single Acting
Air Supply Pressure	Double Acting：2-8bar / Single Acting：4-8bar
Output Torque	Double Acting：4N·M～10560N·M
	Single Acting：7N·M～2668N·M
Working Temperature	Normal temperature type：-20℃～80℃（Nitrile rubber O-ring）
	High temperature type：-20℃～160℃（Fluorocarbon O-ring）
Range of motion	0～90°±5°
Interface thread	ATD50～ATD88    G1/8″
	ATD100～200   G1/4″
Valve position signal	Positioner:4~20mA;                        Limit Switch：full open/full close signal

Female thread pneumatic 3 way ball valve Technical parameter
Nominal diameter:DN15~DN50;
Nominal pressure:PN1.6,PN2.5,PN4.0,PN6.4;
Connection type:female thread;
Action range:0~90°；
Body material: stainless steel 304/316/316L;
Ball material:stainless steel 304/316/316L;
Seat seal:PTFE,PPL,metal seal;
Application temperature: PTFE≤180°C, PPL≤350°C, metal seal≤450°C;

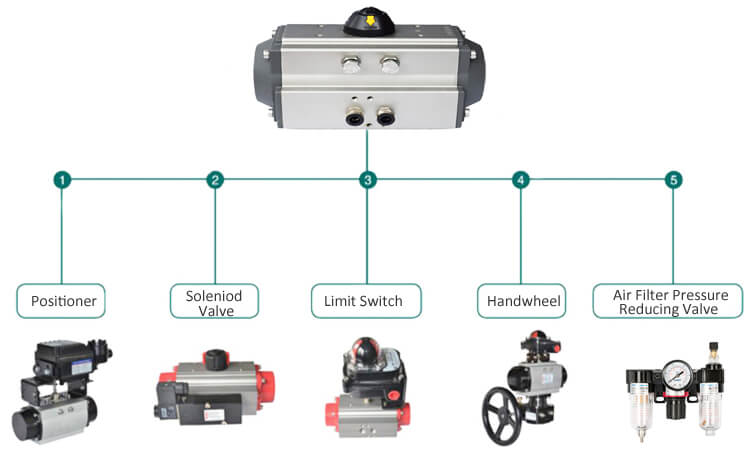

Female thread pneumatic 3 way ball valve accessories
