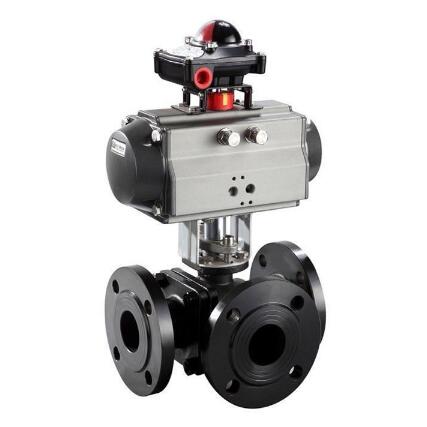

Cast steel WCB Body 3 way pneumatic ball valve Featue:

Cast steel WCB Body 3 way pneumatic ball valve is composed of 3 way ball valve and pneumatic actuator (single acting or double acting pneumatic actuator is optional.Cast steel WCB Body 3 way pneumatic ball valve can be WCB body or stainless steel Body,Cast steel WCB Body 3 way pneumatic ball valve is divided into L port pneumatic 3 way ball valve and T port pneumatic 3 way ball valve.Cast steel WCB Body 3 way pneumatic ball valve is used for the direction switch of medium flow, enabling two channels that are vertical to each other connect.Cast steel WCB Body 3 way pneumatic ball valve is used for diversion,convergence and flow direction switch of medium.Flange type stainless steel pneumatic three way ball valve is widely used in water supply, petrochemical, metallurgy,mining,textile,energy, papermaking,food,steel and other pipeline systems to switch the flow direction of the medium and to divert or converge.


Cast steel WCB Body 3 way pneumatic ball valve Performance:

Type of Pneumatic Actuator	Double Acting/Single Acting
Air Supply Pressure	Double Acting：2-8bar / Single Acting：4-8bar
Output Torque	Double Acting：4N·M～10560N·M
	Single Acting：7N·M～2668N·M
Working Temperature	Normal temperature type：-20℃～80℃（Nitrile rubber O-ring）
	High temperature type：-20℃～160℃（Fluorocarbon O-ring）
Range of motion	0～90°±5°
Interface thread	ATD50～ATD88    G1/8″
	ATD100～200   G1/4″
Valve position signal	Positioner:4~20mA;                        Limit Switch：full open/full close signal

Cast steel WCB Body 3 way pneumatic ball valve Technical parameter:

Nominal diameter:DN15~DN50;
Nominal pressure:PN1.6,PN2.5,PN4.0,PN6.4;
Connection type:female thread;
Action range:0~90°；
Body material: stainless steel 304/316/316L;
Ball material:stainless steel 304/316/316L;
Seat seal:PTFE,PPL,metal seal;
Application temperature: PTFE≤180°C, PPL≤350°C, metal seal≤450°C;

Cast steel WCB Body 3 way pneumatic ball valve  accessories:
