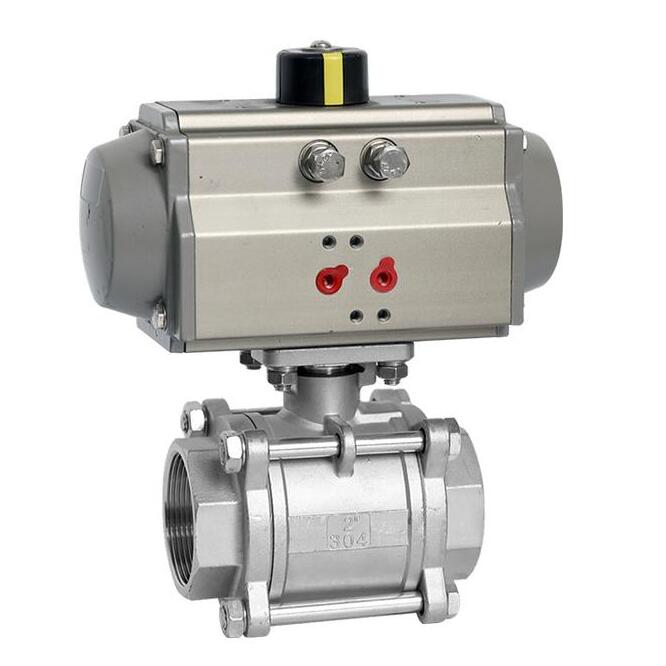

Stainless Steel Pneumatic Control Ball Valve with Mounting Pad introduction:
Stainless Steel Pneumatic Control Ball Valve with Mounting Pad has the high platform connection design.Through the compressed air as the power source, we may control the ball valve to open and close. Stainless Steel Pneumatic Control Ball Valve with Mounting Pad overall structure is compact, switch quickly, which is is used in industrial automation control system, to complete the adjustment of pipeline medium flow, pressure, temperature and other technical parameters, to achieve automatic control.
Stainless Steel Pneumatic Control Ball Valve with Mounting Pad specification:
1. Actuator type: single acting pneumatic actuator
2. size: 1/4"~4"
3. Thread standard: BSPT,NPT,RC
4. Fluid: Air, Water, steam, water treatment for Applicable temperature: -29℃~150℃
5. Pressure class: 1000 WOG or 2000 WOG
6.3 Piece pneumatic actuated ball valve single acting Structure:3 PC
7. Materials: S.S.304, S.S.316, A216 WCB
8. Full port design
9. Investment casting
10. Blow-out proof stem
11. Locking device handle (option)
12. PED97/23/EC (CE0035) approved
13.Stainless Steel Pneumatic Control Ball Valve with Mounting Pad Option connection:
Threaded: ASME B1.20.1, BS21, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Welded: ASME B16.25 (SCH40), ASME B16.11
Clamped: ISO2852-1993
Stainless Steel Pneumatic Control Ball Valve with Mounting Pad Pneumatic actuator information:
| 1). Pressure Range: Max. Working pressure 10bar |
| 2). Air pressure: 2.5bar~8bar |
| 3). Adjustment Range: 90° ± 5° |
| 4). Ambient temperature: -20 ~ +90° C |
| 5). Type: Double-acting, Single-acting (spring return) |
| 6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator |
| 7). Lubrication: All the moving parts are coated with lubricants, extending their service life |
8). Life Time: One million time
|
Stainless Steel Pneumatic Control Ball Valve with Mounting Pad accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
