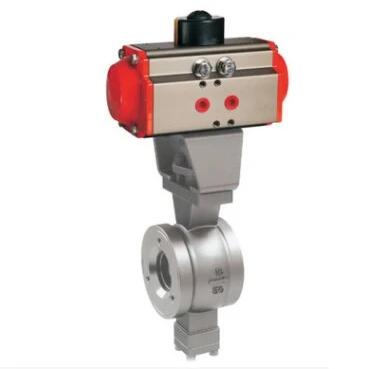

Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve

Model:

  • Port size:1'' ~ 20''( 15mm ~ 500mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Wafer type,flange type is optional
  • Position type:Double acting or single acting
  • Characteristic:V notch ball
  • Voltage:/
  • Other:Good regulating performance
Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve introduction:
Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve a new generation of short length distance ball valve.The core channel is v-shaped. Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve has the characteristics of compact structure, small volume and light weight.Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve is composed of double acting or single acting pneumatic ball valve and V port segmented ball valve.Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve is widely used in chemical industry, petroleum, natural gas, metallurgy, and other industries, as well as natural gas long-distance transportation pipelines with hydrogen sulfide medium, many impurities and serious corrosion.

Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve Specifcation:
Model Q670F,Q670H
Nominal Diameter DN25-500mm
Pressure PN1.6;2.5;4.0;6.4MPa; 150Lb;300Lb;600Lb
Structure V-type Cut Fixed Ball Valve
Design Standard ANSI; JIS; GB; DIN
Body Material WCB; CF8; CF8M; CF3; CF3M
Seat Material PTFE; PPL; H.Y
Action Manner Double acting; Single acting
Control Type On-off Type; Adjust type
Accessories Limit Switch; Solenoid Valve; Positioner; F.R.L

Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve standard:
Design Basis GB Standard ANSI Standard
Design Standard GB/12237 ANSI B16.34
Connection Flange Size GB/9113  JB/T79 ANSI B16.5
Test & Inspection JB/T9092 API 598

Pneumatic Actuated Wafer V Port Stainless Steel Ball Valve material:
NO Parts Name Quality Material
1 Body 1 WCB; CF8; CF8M; CF3; CF3M
2 Spool 1 CF8,CF8M
3 After steam 1 SUS316
4 Cylindrical pin 2 SUS316
5 Before steam 1 SUS316
6 Spline 1 SUS316
7 Flat key 1 SUS304
8 After gland 1 CF8,CF8M
9 O-ring 1 Viton
10 Adjust pad 1 PTFE
11 Self-lubricating bearings 1 Composite material
12 Self-lubricating bearings 1 Composite material
13 Packing 2 PTFE
14 Gland 1 CF8M
15 O-ring 1 VitonPTFE,
16 Seal block 1 PTFE,SUS304,SUS316
17 Seal block spring 1 SUS316
18 Sealing lid 1 SUS304,SUS316
19 Inner Hexagon screw 4 SUS304
20 Hexagon screw 1 SUS304
21 Double-headed screw 1 SUS304
22 Hexagon nut 1 SUS304
