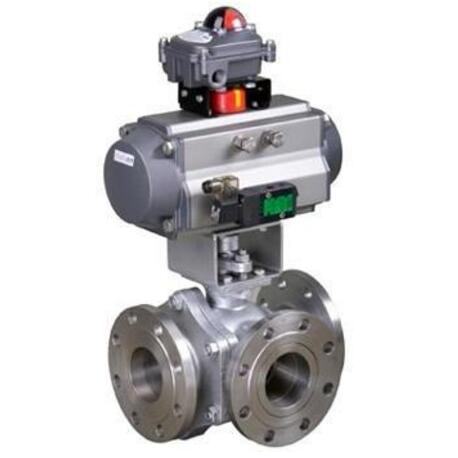

Pneumatic stainless steel 3 way ball control valve introduction
Pneumatic stainless steel 3 way ball control valve is composed of angle stroke piston type pneumatic actuator and 3 way ball valve(T port or L port is optional), Pneumatic stainless steel 3 way ball control valve is a kind of rotary cutting off, regulating valve, with close, compact structure, light weight, convenient maintenance and other advantages.Pneumatic stainless steel 3 way ball control valve can be equipped with valve positioner input control signal (4-20madc or 1-5vdc) air source can control operation.Pneumatic stainless steel 3 way ball control valve can also be equipped with stroke limit switch, solenoid valve, pressure reducing valve and air source of 0.4-0.7mpa to realize switching operation, and send out two pairs of passive contact signals indicating the switch of the valve.

Pneumatic stainless steel 3 way ball control valves have compact structure, beautiful appearance, good sealing performance, it can achieve the flow of media in the pipeline to switch, but also can make the two mutually vertical channels connected or closed.Pneumatic stainless steel 3 way ball control valve can not only realize the switching of medium flow direction, but also make the three channels connected to each other, now can also close any channel, so that the other two channels connected, flexible control pipeline intermediate confluence or shunt.Pneumatic stainless steel 3 way ball control valve is suitable for switching medium flow direction and diverting or mixed fluid to medium in pipeline system of water supply, petrochemical, metallurgy, mining, textile, energy, papermaking, food, steel and so on.

Pneumatic stainless steel 3 way ball control valve technical parameter
Nominal diameter: DN15-DN200
Body material: stainless steel 304, 316, 316L
Ball material: stainless steel 304, 316, 316L
Seat material: PTFE, alignment, metal hard seal
Connection type: flange connection
Pressure rating: PN10/PN16/PN25/PN40/PN64
Temperature range: -29~+420°C
Pneumatic actuator: double acting, single acting (normally closed, normally open)
Pneumatic accessories: solenoid valve, limit switch, air filter pressure reducing valve,handwheel,etc
Electric actuator: Switch type with passive signal, intelligent adjustment input and output 4-20mA
Optional: Optional explosion-proof electric actuator; explosion-proof rating: EX dIIBT4 /EX dIICT6
Voltage: AC220V/AC110V/AC380V/DC24V

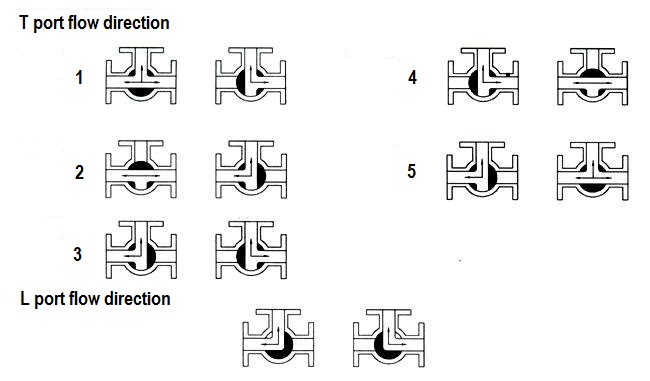

Pneumatic stainless steel 3 way ball control valve flow direction

Pneumatic stainless steel 3 way ball control valve introduction accessories
