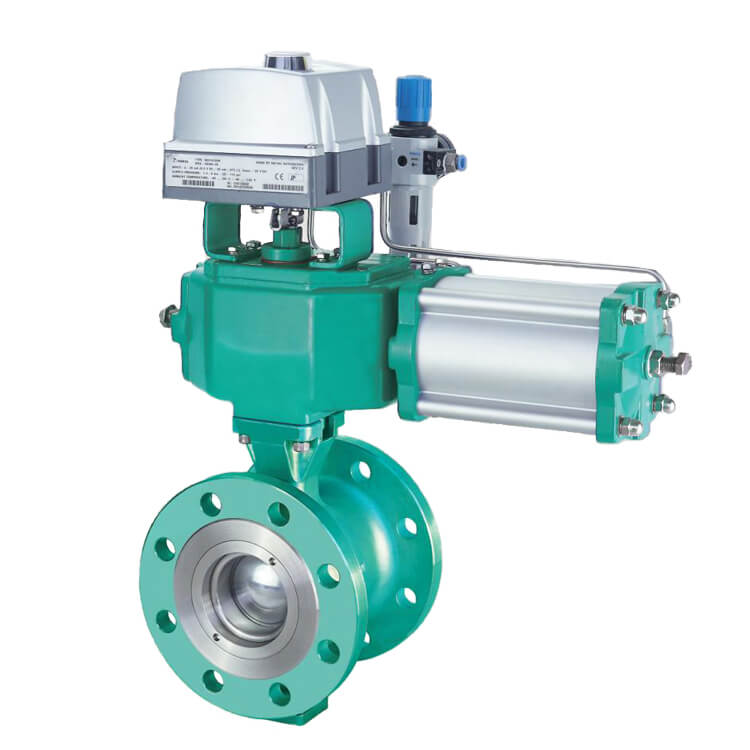

Pneumatic segmented ball valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~425℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flanged or wafer
  • Position type:Double acting or single acting
  • Characteristic:V notch ball
  • Voltage:Depond on accessories
  • Other:
  • Pneumatic segmented ball valve Featue

    Pneumatic segmented ball valve is a kind of ball valve.Pneumatic segmented ball valve has the same sealing performance as a normal ball valve, and it has both regulating and on off functions.The disc of Pneumatic segmented ball valve is a hemisphere with a V-shaped notch and there is a sharp edge on the V-shaped notch.

    During the rotation of the ball for Pneumatic segmented ball valve ,there is a wiping action between the closing discs, which has a strong cutting force to the medium.There forms a sectoral area between the v-shaped notch of the ball and the valve seat flow passage.The cross-sectional area of the flow channel of Pneumatic segmented ball valve can be changed during the rotation process to form a precise control of the medium.

  • Pneumatic segmented ball valve structure and material

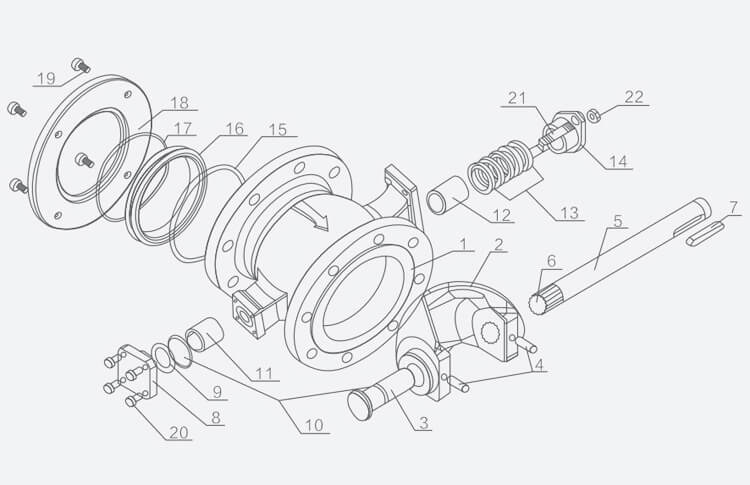

    pneumatic segmented ball valve structure
No. Parts Name Q’ty(pc) Material
1 Valve Body 1 WCB,CF8,CF8M,CF3,CF3M
2 Valve Ball 1 CF8,CF8M+chrome plating or HVOF spraying
3 Lower Stem 1 17-4PH,SS316
4 Round Pin 2 SS304,SS316
5 Upper Stem 1 17-4PH,SS316
6 Spline 1 17-4PH,SS316
7 Flat Key 1 SS304,45#
8 Lower Gland 1 CF8,CF8M
9 O-ring 1 Fluororubber
10 Gasket 1 PTFE
11 Self-lubricating Bearing 1 Composite Material
12 Self-lubricating Bearing 1 Composite Material
13 Packing 1 set PTFE
14 Packing Gland 1 CF8
15 O-ring 1 Fluororubber
16 Seal Ring 1 SS304,SS316+chrome plating or HVOF spraying
17 Seal Seat Spring 1 SS316
18 Seal Seat Cover 1 Q235,SS304,SS316
19 Soket Head Cap Screw   SS304
20 Hex Head Screw 4 SS304
21 Double Head Screw 2 SS304
22 Hex Head Screw 2 SS304
