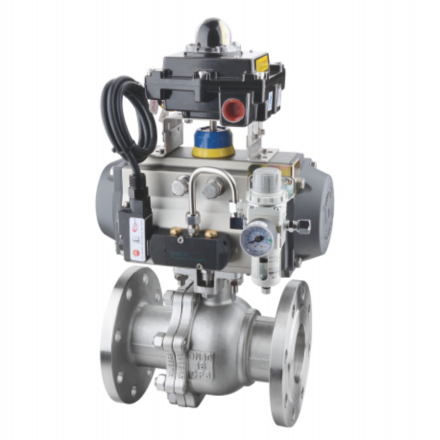

Pneumatic stainless steel ball valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~180℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange,thread and SW is optional
  • Position type:Double acting,single acting or regulating type
  • Characteristic:Quick open
  • Voltage:Depond on accessories
  • Other:Side handwheel is optional
  • Pneumatic stainless steel ball valve feature

    Pneumatic stainless steel ball valve material is on base of different material for corrosive medium,Pneumatic stainless steel ball valve is one type of ball valve assembly which is mounted with pneumatic actuator, achieving in the purpose of automatic control and remote control on the ball valve action.

    There are two types of pneumatic actuators mounted with the Pneumatic stainless steel ball valve, one type is single action pneumatic actuator (which is also called spring return pneumatic actuator); the other type is double action pneumatic actuator. Normally, the clients select the spring return pneumatic actuator, because this type of pneumatic actuator needs only one air supply.

  • Pneumatic stainless steel ball valve specification

    Design: BS5351, ANSI B16.34, DIN, JIS
    ​Sizes: 1/2" ~8" (15mm~200mm)
    Nominal Pressure: PN10, PN16, PN25, CLASS150LB, CLASS300LB, JIS10K, JIS20K
    Materials: Carbon steel, stainless steel, sanitary stainless steel, cast iron
    Mounting Pad: ISO5211
    Pneumatic Actuator Specifications:
    Air Supply: 3bar~7bar
  • Pneumatic stainless steel ball valve structure



  • Pneumatic stainless steel ball valve Technical requirement

    Nominal diameter DN(mm) 25 40 50 65 80 100 125 150 200 250 300
    Rated flow coefficient Cv Full chamber type 14 30 55 100 135 230 320 500 850 1300 1750
    Shrinkage chamber type 6 12 20 40 54 92 128 200 340 520 700
    Double action pneumatic actuaror Air supply pressure 400KPa
    Model Torque(N.M) PTFE packing , metal seal allow differential pressure
    ATD63 23.5 2.35 0.94
    ATD75 46.5 5.0 2.84 1.49 0.57 0.33
    ATD88 73.2     2.39 0.99 0.62
    ATD100 106       1.54 0.99 0.30 0.19
    ATD125 221           1.29 0.80 0.39
    ATD160 453           2.84 1.79 0.89 0.47 0.26 0.14
    Single action pneumatic actuator Air supply pressure 400KPa
    Model torque(N.M) PTFE packing , metal seal allow differential pressure
    ATS75 26.5 0.19
    ATS88 44 1.19 0.09
    ATS100 60.7 3.97 1.59 0.81 0.11
    ATS125 126     2.19 0.89 0.59
    ATS160 269         1.39 0.53 0.34
    ATS200 467           2.84 1.79 0.89 0.47 0.26 0.14

  • Pneumatic stainless steel ball valve actuator performance

    Model/Style Pneumatic piston acturator
    AT Series
    Single action, Double action
    Usage Adjustment, on-off
    Air supply pressure or supply voltage Air supply pressure ( spring scope)
    400 Kpa G
    Connector Air tube adapter: RC1/4
    Direct action Gas pressure increase disk anti-clockwise rotation,valve close
    Reaction Gas pressure increase disk clockwise rotation,valve open
    Input signal 40~20mA.DC(with E/P positioner)
    Lag ≤1%FS(with positioner)
    Linearity 2%FS(with positioner)
    Working temperature -10℃~+70℃
    Coating Green, acrylic polyurethane enamel
    Option parts 1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating.
    2 Valve position transmitter
    3 solenoid valve
    4 limited switch
    5 Air filter reducer
