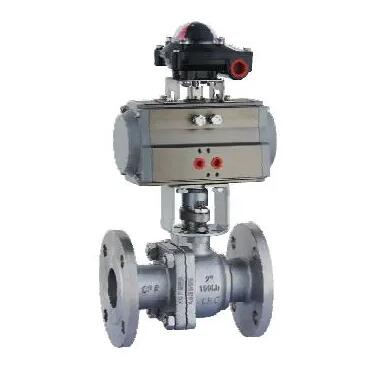

Double acting pneumatic actuator stainless steel ball valve

VALVE

contact us

SHANGHAI HUIXUAN VALVE

Tel:+86-17717520739

Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：1/2'' ~ 16''( 15mm ~ 400mm)
Pressure：PN16 ~ 40 CLASS 150/300LB
Medium：Water,oil,steam,gas
Temperature :-20～180℃
Body material：WCB CF8 CF3 CF8M CF3M or others
Connection：Flange
Position type：Double acting
Characteristic：Floating ball or Trunnion
Voltage：/
Other：Different accessories is optional

Double acting pneumatic actuator stainless steel ball valve Feature:
Double acting pneumatic actuator stainless steel ball valve is the high quality on off ball valve with double acting pneumatic actuator.The Double acting pneumatic actuator stainless steel ball valve has the characteristics of large circulation capacity,compact structure,good sealing performance and long service life,and Double acting pneumatic actuator stainless steel ball valve is economical, practical and easy to maintain.

Double acting pneumatic actuator stainless steel ball valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy, food, pharmaceutical and other applications where strict requirements are required.Double acting pneumatic actuator stainless steel ball valve can also be applied to water, steam, oil, liquefied gas, natural gas, gas and other media. In addition, fire-resistant and special hardening treatments can be selected according to customers’ requirements.

Double acting pneumatic actuator stainless steel ball valve Performance:

Pneumatic Actuator Parameters		Pneumatic Operated On Off Ball Valve Parameters
Actuator Type	single-acting(FO,FC),double-acting (FL)	Nominal Diameter	DN15～400mm
Air Supply Pressure	double-acting：2-8bar; single-acting：4-8bar	Nominal Pressure	PN16,PN25,PN40,CL150 CL300,etc
Output Torque	double-acting：4N·M～10560N·M	Valve Stem	stainless steel
Output Torque	single-acting：7N·M～2668N·M	Body Material	SS304,SS316,SS316L
Working Temperature	Normal temperature type：-20℃～80℃（Nitrile rubber O-ring）	Valve Ball	SS304
Working Temperature	High temperature type：-20℃～160℃（Fluorocarbon O-ring）	Seat Seal	PTFE/PCTFE
Action Range	0～90°±5°	End Connnection	flange type
Interface thread	GTD40～GTD83/ATD50～ATD88 G1/8″	Application Medium	Water,steam,oil,gas
Interface thread	GTD110～GTD350/ATD100～200 G1/4″	Application Medium	Water,steam,oil,gas
Valve position signal	Positioner:4~20mA; Limit Switch:full open/full close signal	Feature	flexible open & close and reliable sealing

Double acting pneumatic actuator stainless steel ball valve Standards:

Design: API6D, API608,ASME B16.34, ISO14313, MSS SP-72
Face to face: ASME B16.10,AP6D
Flange end: ASME B16.5,ASME B16.47,EN1092, GOST 33259,etc.
Butt welded end: ASME B16.25
Leakage standard: ANSI B16.104
Inspection and test API 598,API6D

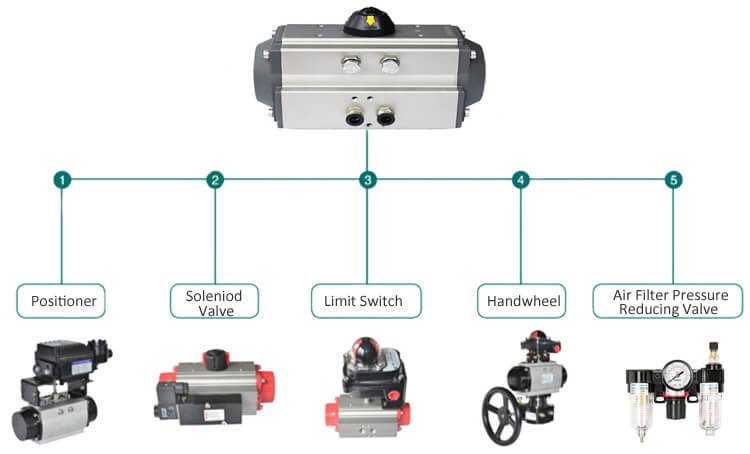

Double acting pneumatic actuator stainless steel ball valve accessories:
