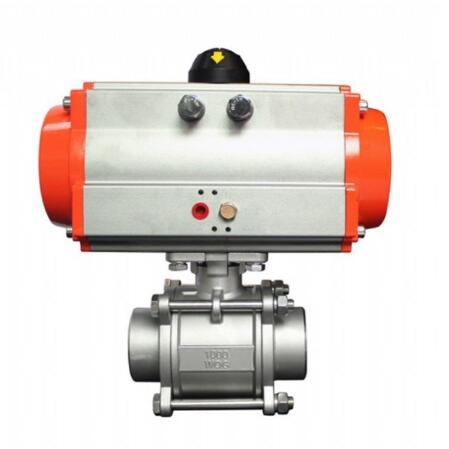

3 Piece pneumatic actuated ball valve single acting

Model:

  • Port size:1/4'' ~ 4''
  • Pressure:1000WOG 2000WOG
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Thread or BW,SW,Flanged is optional
  • Position type:Single acting spring return
  • Characteristic:High platform direct installation
  • Voltage:/
  • Other:Different accessories is optional
3 Piece pneumatic actuated ball valve single acting specification:

1. Actuator type: single acting pneumatic actuator

2. 3 Piece pneumatic actuated ball valve single acting size: 1/4"~4"

3. Thread standard: BSPT,NPT,RC

4. Fluid: Air, Water, steam, water treatment for Applicable temperature: -29℃~150℃

5. Pressure class: 1000 WOG or 2000 WOG

6. 3 Piece pneumatic actuated ball valve single acting Structure:3 PC

7. Materials: S.S.304, S.S.316, A216 WCB

8. Full port design

9. Investment casting

10. Blow-out proof stem

11. Locking device handle (option)

12. PED97/23/EC (CE0035) approved

13.3 Piece pneumatic actuated ball valve single acting Option connection:
Threaded: ASME B1.20.1, BS21, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Welded: ASME B16.25 (SCH40), ASME B16.11
Clamped: ISO2852-1993

3 Piece pneumatic actuated ball valve single acting accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer

3 Piece pneumatic actuated ball valve single acting
