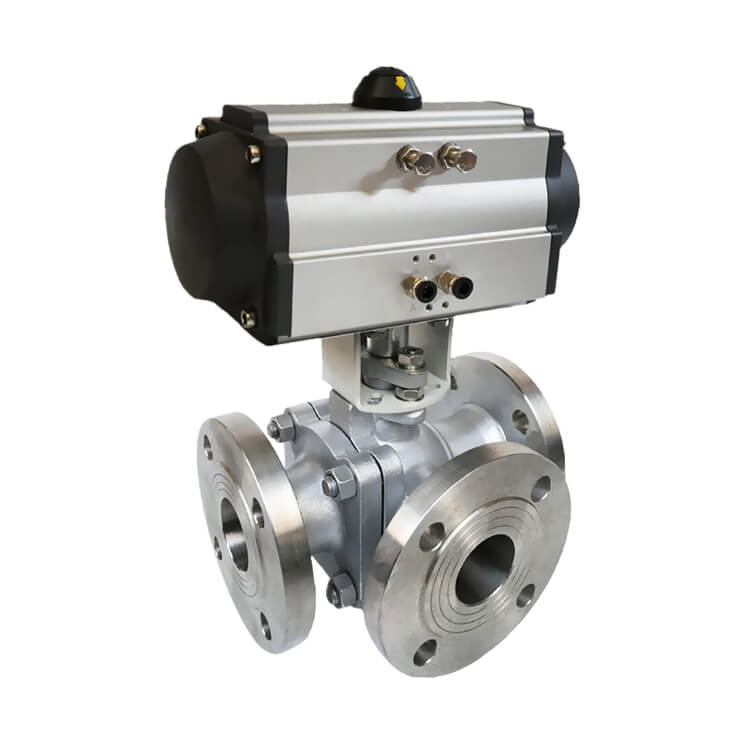

Pneumatic T Port L Port 3 way ball valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange
  • Position type:T Port or L Port
  • Characteristic:3 way structure
  • Voltage:Depond on accessories
  • Other:
  • Pneumatic T Port L Port 3 way ball valve Featue

    Pneumatic T Port L Port 3 way ball valve  is composed of a pneumatic piston actuator and a flanged 3 way ball valve. Pneumatic T Port L Port 3 way ball valve can be divided into single acting and double acting.And the ball of the Pneumatic T Port L Port 3 way ball valve is divided into L-type and T-type. The pneumatic actuator drives the ball to achieve the purpose of reversing control through a 90-degree rotation action, or achieves the control of commutation and diversion at 180 degrees. purpose. The direct connection of the actuator to the Pneumatic T Port L Port 3 way ball valve body reduces the chance of failure.

  • Pneumatic T Port L Port 3 way ball valve  Performance

    1. 3 way ball valve type:L port or T port;
    2.It needs to know the size and pressure of the Pneumatic T Port L Port 3 way ball valve ;
    3.The pneumatic actuator type:double acting or single acting;
    4.The accessories required: positioner,solenoid valve,limit switch,handwheel,air filter pressure reducing valve,etc
  • Pneumatic T Port L Port 3 way ball valve Technical parameter

    Nominal diameter: DN15-DN200
    Body material: stainless steel 304, 316, 316L
    Ball material: stainless steel 304, 316, 316L
    Seat material: PTFE, alignment, metal hard seal
    Connection type: flange connection
    Pressure rating: PN10/PN16/PN25/PN40/PN64
    Temperature range: -29~+420°C
    Pneumatic actuator: double acting, single acting (normally closed, normally open)
    Pneumatic accessories: solenoid valve, limit switch, air filter pressure reducing valve,handwheel,etc
    Electric actuator: Switch type with passive signal, intelligent adjustment input and output 4-20mA
    Optional: Optional explosion-proof electric actuator; explosion-proof rating: EX dIIBT4 /EX dIICT6
    Voltage: AC220V/AC110V/AC380V/DC24V
  • Pneumatic T Port L Port 3 way ball valve accessories

    Pneumatic T Port L Port 3 way ball valve accessories
