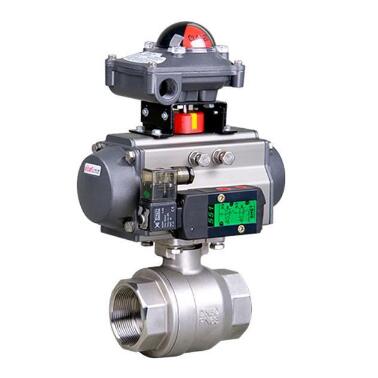

2 Piece full port thread ball valve with pneumatic actuator specification:

1. Actuator type: single acting or double acting  pneumatic actuator

2. 2 Piece full port thread ball valve with pneumatic actuator size: 1/4"~4"

3. Thread standard: BSPT,NPT,RC

4. Fluid: Air, Water, steam, water treatment for Applicable temperature: -29℃~150℃

5. Pressure class: 1000 WOG or 2000 WOG

6. 2 Piece full port thread ball valve with pneumatic actuator Structure:2 PC

7. Materials: S.S.304, S.S.316, A216 WCB

8. Full port design

9. Investment casting

10. Blow-out proof stem

11. Locking device handle (option)

12. PED97/23/EC (CE0035) approved

13. 2 Piece full port thread ball valve with pneumatic actuator Option connection:
Threaded: ASME B1.20.1, BS21, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Welded: ASME B16.25 (SCH40), ASME B16.11
Clamped: ISO2852-1993

2 Piece full port thread ball valve with pneumatic actuator accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
