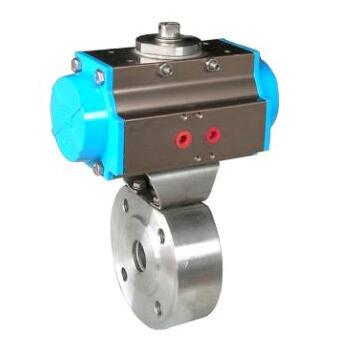

Q671F Pneumatic wafer thin ball valve

Model:Q671F

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 40 CLASS 150/300LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Wafer type
  • Position type:FC,FO,on-off
  • Characteristic:Short face to face length,save space
  • Voltage:/
  • Other:Different accessories is optional
Q671F Pneumatic wafer thin ball valve introductuon
Q671F Pneumatic wafer thin ball valve is a new generation of ultra-short flange pitch ball valve developed by the introduction of Italian technology for domestic design, Q671F Pneumatic wafer thin ball valve is composed of single (double) action piston pneumatic actuator and ultra-thin ball valve.Q671F Pneumatic wafer thin ball valve can be equipped with valve positioner input control signal (4-20madc or 1-5vdc) air source can control operation.Q671F Pneumatic wafer thin ball valve Can also be equipped with stroke limit switch, solenoid valve, pressure reducing valve and 0.4 ~ 0.7mpa air source to achieve switching operation, and send out two pairs of passive contact signal indicating the switch valve.

Q671F Pneumatic wafer thin ball valve ball core channel shape rectangular, v-shaped and o-shaped.This series of Q671F Pneumatic wafer thin ball valve have the characteristics of compact structure, small volume, light weight and convenient installation.Therefore, Q671F Pneumatic wafer thin ball valve is widely used in the fields of petroleum, chemical industry, metallurgy, power plant, light industry, and so on, oil, water, gas and pulp or fiber fluid for automatic adjustment or cut off control.

Q671F Pneumatic wafer thin ball valve feature

Full bore design
Integral body
short lenhth ball type
Blow out proof stem
Fire safe construction
Anti static device
Stopper device
ISO 5211 mounting bracket
Wafer ends
Available with lever and worm geared operator
Materials: A216 WCB, A105N, A182 F304, F304L, F316, F316L, A351 CF8, CF8M, CF3, CF3M

Q671F Pneumatic wafer thin ball valve technical requirement
Nominal diameter DN(mm) 25 40 50 65 80 100 125 150
Rated flow coefficient Cv Full chamber type 14 30 55 100 135 230 320 500
Shrinkage chamber type 6 12 20 40 54 92 128 200
Double action pneumatic actuator Air supply pressure 400KPa
Model Torque(N.M) PTFE packing , metal seal allow differential pressure
ATD63 23.5 2.35 0.94
ATD75 46.5 5.0 2.84 1.49 0.57 0.33
ATD88 73.2     2.39 0.99 0.62
ATD100 106       1.54 0.99 0.30 0.19
ATD125 221           1.29 0.80 0.39
ATD160 453           2.84 1.79 0.89
Single action pneumatic actuator Air supply pressure 400KPa
Model torque(N.M) PTFE packing , metal seal allow differential pressure
ATS75 26.5 0.19
ATS88 44 1.19 0.09
ATS100 60.7 3.97 1.59 0.81 0.11
ATS125 126     2.19 0.89 0.59
ATS160 269         1.39 0.53 0.34
ATS200 467           2.84 1.79 0.89

Pneumatic wafer type short thin ball valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
