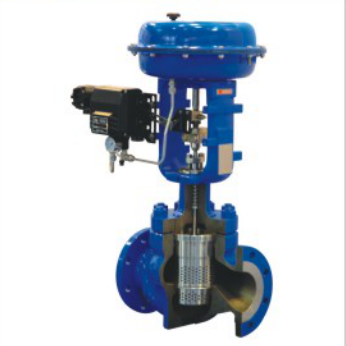

Pneumatic low noise control valve

Model:HCN

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-196~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange
  • Position type:Air pressure increase, valve close or opposite
  • Characteristic:Linear, percentage, quick open
  • Voltage:Depond on solenoid valve
  • Other:Symmetric holes on the valve trim design
  • Pneumatic low noise control valve Feature

    Pneumatic low noise control valve uses modular design and impact structure. Through the special symmetric holes on the cntrol valve trim, Pneumatic low noise control valve could reduce the noise and pressure, thereby preventing from flashing and cavitation,make it applicable for high pressure difference and low noise conditions to meet customers requirements. caged seat and compressing connection of the valve body,greatly enhance the sealing grade and service life of the control valve , which make it easy to repair and greatly increase the general performance of Pneumatic low noise control valve.

    Pneumatic low noise control valve pneumatic actuator makes the control valve realize the conversion of normal close and normal open on site easily,the spring of the control valve can be effectively protected from the corrosion to prolong the service life of actuator and convenient for customers operation. The actuator and the intelligent control valve positioner are connected pipeless to strengthen the antisemitic performance,stability and precision adjustment, to meet to exactly control of the working conditions.

    Pneumatic low noise control valve includes standard type,high temperature type,low temperature type,bellows sealing type etc.Nominal pressure:PN(Mpa)1.6,2.5,4.0,6.4,10.0(150lb,300lb,600lb);Nominal diameter:DN(mm)20~200(3/4”~8”);Fluid temperature range:-196~+560℃;Pneumatic low noise control valve Leakage class:IV,V,VI;Flow characteristic:percentage,linear.

  • Pneumatic low noise control valve specification

    Pneumatic control valve
    Body type:
    straight through casting globe type
    Spool type: balanced cage guided type
    Nominal size: DN20~300,、 NPS 3/4〞~ 12〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic low noise control valve Bonnet type: Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
  • Pneumatic low noise control valve material

    Component name Pneumatic Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic low noise control valve performance

    Pneumatic low noise control valve Flow characteristic Linear, percentage
    Allowable range 50: 1
    Rated Cv value Percentage CV10~1400 ,linear CV11~1500
    Pneumatic low noise control valve
    Allowable leakage
    Metal seal:Ⅱgrade(0.5% rated capacity)
    Soft seal: V grade
    Leakage standard:  GB/T 4213
    Pneumatic low noise control valve Performance
    Intrinsic error (%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
  • Pneumatic low noise control valve special requirement

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • Pneumatic low noise control valve actuator parameter

    Pneumatic control valve
    Type\ Method
    Pneumatic diaphragm actuator
    ZH23~ZH56
    Multi-spring type
    Usage Regulating type, ON-OFF type
    Air supply pressure or Power supply voltage Air supply pressure (Spring range)
    140(20~100)Kpa G
    240 (40~200) Kpa G
    280 (80~240) Kpa G
    Connector Air pipe connector: RC1/4
    Direct action Pressure increase, stem descend, valve close.
    Reaction Pressure increase, stem ascend, valve open.
    Input signal 40~20mA.DC(with positioner)
    Lag ≤1%FS(with positioner)
    Linear type 2%FS(with positioner)
    Environmental temperature -10℃~+70℃
    Pneumatic low noise control valve
    Accessories
    E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
    Non-standard accessories, need special customized notes.
  • Pneumatic low noise control valve technical parameter

    Seat diameter(mm) 25 32 40 50 65 80 100 125 150 200 250 300
    Rated Cv Percentage 10 16 25 40 63 100 160 250 400 630 1000 1400
    Linear 11 17.6 27.5 44 69 110 176 275 440 690 1100 1500
    Nominal size Travel Option flow coefficient, Cv(★standard ●recommended ○customized)
    DN25 16 mm
    DN32 25 mm
    DN40
    DN50
    DN65 40mm
    DN80
    DN100
    DN125 60mm
    DN150
    DN200
    DN250 100mm
    DN300
    Pneumatic actuator,Diaphragm effective area, Ae (cm2) ZHA/B-23 ZHA/B-34 ZHA/B-45 ZHA/B-56
    350 560 900 1600
    Action Spring range Pneumatic low noise control valve
    Metal seal allowable pressure difference(MPa)
    Air to open 20-100KPa 3 2.25 2.25 1.95 2.36 2.04 1.67 1.41 1.41 1.14 0.65 0.55
    40-200 KPa 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 1.55 1.4
    80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 4.08 4.08
    Air to close 20-100KPa 1.5 1.13 1.13 0.98 1.18 1.02 0.84 0.71 0.71 0.57 0.65 0.55
    40-200 KPa 4.5 3.38 3.38 2.93 3.54 3.06 2.51 2.12 2.12 1.71 1.8 1.55
    80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 5.85 4.94 4.94 4 4.08 3.65
