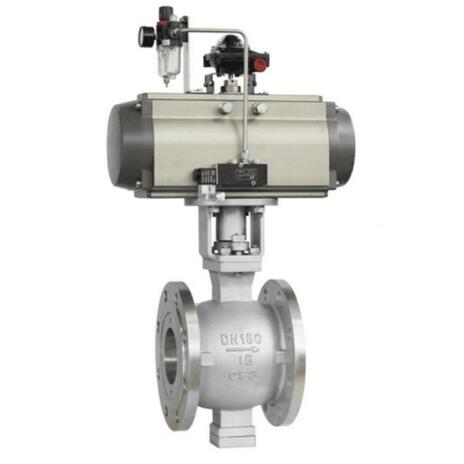

JIS 10K 16K Pneumatic V port Segment ball valve introduction:
JIS 10K 16K Pneumatic V port Segment ball valve end can be flange type or wafer type with trunnion ball structure,the core channel is v-shaped. JIS 10K 16K Pneumatic V port Segment ball valvehas the characteristics of compact structure, small volume and light weight.JIS 10K 16K Pneumatic V port Segment ball valve is composed of double acting or single acting pneumatic ball valve and V port segmented ball valve with JIS 10K or JIS 16K or other standard.JIS 10K 16K Pneumatic V port Segment ball valve is widely used in chemical industry, petroleum, natural gas, metallurgy, and other industries, as well as natural gas long-distance transportation pipelines with hydrogen sulfide medium, many impurities and serious corrosion.

JIS 10K 16K Pneumatic V port Segment ball valve Specifcation:

JIS 10K 16K Pneumatic V port Segment ball valve material:

NO	Parts Name	Quality	Material
1	Body	1	WCB; CF8; CF8M; CF3; CF3M
2	Spool	1	CF8,CF8M
3	After steam	1	SUS316
4	Cylindrical pin	2	SUS316
5	Before steam	1	SUS316
6	Spline	1	SUS316
7	Flat key	1	SUS304
8	After gland	1	CF8,CF8M
9	O-ring	1	Viton
10	Adjust pad	1	PTFE
11	Self-lubricating bearings	1	Composite material
12	Self-lubricating bearings	1	Composite material
13	Packing	2	PTFE
14	Gland	1	CF8M
15	O-ring	1	VitonPTFE,
16	Seal block	1	PTFE,SUS304,SUS316
17	Seal block spring	1	SUS316
18	Sealing lid	1	SUS304,SUS316
19	Inner Hexagon screw	4	SUS304
20	Hexagon screw	1	SUS304
21	Double-headed screw	1	SUS304
22	Hexagon nut	1	SUS304

JIS 10K 16K Pneumatic V port Segment ball valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
