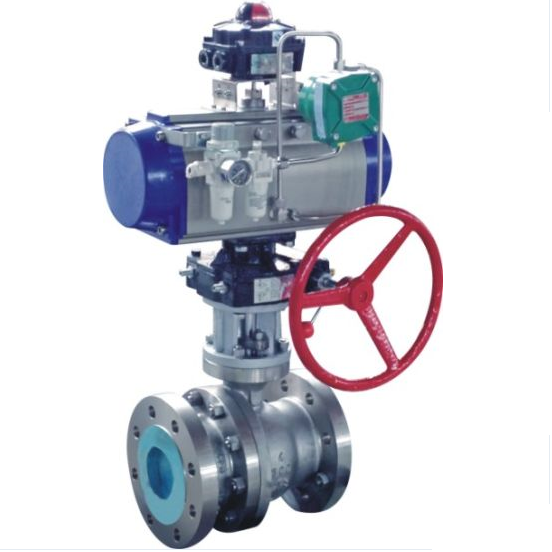

Pneumatic cut off ball valve

Model:Q641F

  • Port size:DN15~500, NPS 1/2〞~ 20〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flange,thread and SW is optional
  • Position type:On-off type
  • Characteristic:Quick open
  • Voltage:Depond on accessories
  • Other:Adjusting function need positioner
  • Pneumatic cut off ball valve feature

    Pneumatic cut off ball valve is a kind of quarter-turn on-off valve.Pneumatic cut off ball valve is mainly used for shut-off control of media. This series of Pneumatic cut off ball valve  adopts round hole in the ball. When opened, it is directly connected to the body flow channel, featured by high flow capacity. Compared with plunger valves, Pneumatic cut off ball valve has small structural sizes, light weight and the function of self-cleaning between plug and seat. Therefore, it is very suitable for viscous, fibrous media and those containing suspended solid particles. With low heat expansion impact due to temperature, and good sealing performance, Pneumatic cut off ball valve is widely applied in the systems of such industries as petrochemical industry, metallurgy, chemical fiber, pulp & paper, medicine, hydroelectric station, etc. to meet the needs of remote control of process parameters such as flow, pressure, temperature and liquid level of all gases, liquids or corrosive gases and liquid media.
  • Pneumatic cut off ball valve main technical parmaneters

    ball valve body type  two-piece,three-piece
    Nominal diameter DN15~500(NPS1/2~24)
    Nominal pressure PN 1.6~4.0Mpa(Clsaa150~600)
    Type of connection flanged
    Pneumatic ball valve Material A216-WCB, A351-CF8, A351-CF8M, A351-CF3,
    A351-CF3M, A217-WC6, A217-WC9
    Bonnet: standard type -20~250ºC
    high temperature type 250~525ºC
    Packing PTFE, flexible graphite, nickel-based wire reinforced flexible graphite
