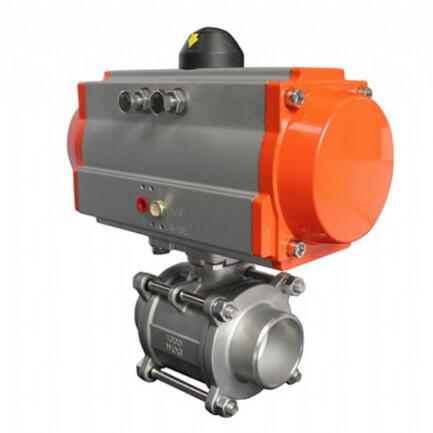

Single Acting Pneumatic Rotary Actuator 3PC Ball Valve

Model:

  • Port size:1/4'' ~ 4''
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Thread or BW,SW,Flanged is optional
  • Position type:Single acting spring return
  • Characteristic:High platform direct installation
  • Voltage:/
  • Other:Different accessories is optional
Single Acting Pneumatic Rotary Actuator 3PC Ball Valve introduction:
Single Acting Pneumatic Rotary Actuator 3PC Ball Valve has the 3 PC high platform connection design .Through the compressed air as the power source, we may control the ball valve to open and close. Single Acting Pneumatic Rotary Actuator 3PC Ball Valve overall structure is compact, switch quickly, which is is used in industrial automation control system, to complete the adjustment of pipeline medium flow, pressure, temperature and other technical parameters, to achieve automatic control.

Single Acting Pneumatic Rotary Actuator 3PC Ball Valve specification:

1. Actuator type: single acting pneumatic actuator
2.  size: 1/4"~4"
3. Thread standard: BSPT,NPT,RC
4. Fluid: Air, Water, steam, water treatment for Applicable temperature: -29℃~150℃
5. Pressure class: 1000 WOG or 2000 WOG
6.Single Acting Pneumatic Rotary Actuator 3PC Ball Valve Structure:3 PC
7. Materials: S.S.304, S.S.316, A216 WCB
8. Full port design
9. Investment casting
10. Blow-out proof stem
11. Locking device handle (option)
12. PED97/23/EC (CE0035) approved
13.Single Acting Pneumatic Rotary Actuator 3PC Ball Valve Option connection:
Threaded: ASME B1.20.1, BS21, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Welded: ASME B16.25 (SCH40), ASME B16.11
Clamped: ISO2852-1993

Single Acting Pneumatic Rotary Actuator 3PC Ball Valve Pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time

Single Acting Pneumatic Rotary Actuator 3PC Ball Valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
