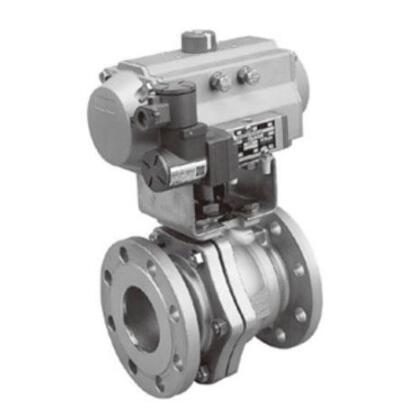

CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve

Model:

  • Port size:1/2'' ~ 16''( 15mm ~ 400mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Position type:Double acting or single acting
  • Characteristic:O type ball
  • Voltage:/
  • Other:Different accessories is optional
CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve introduction:
CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve designed in accordance with 2 pc or 3 pc split body, side entry design. CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve have wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc, CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve can be used in working temperature range -46ºC~ 450ºC.CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage.

CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve Product Range:
-Valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Stainless Steel:CF8 CF8M CF3 CF3M


CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve Design Features:
-Full port or reduce port
- Fire Safe Design
- Trunnion Mounted Ball or floating ball
-Double block & bleed is optional
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
- Anti-Static Device
-Optional double piston design

CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve Pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time



CF8 CF8M CF3 CF3M Pneumatic O Type Floating Ball Valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
