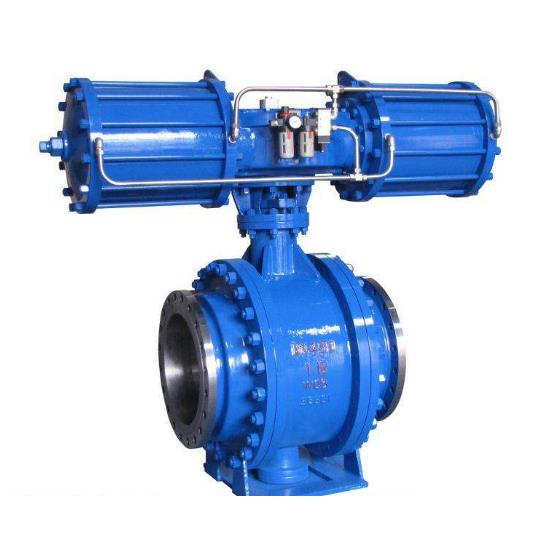

Pneumatic metal seated ball valve

Model:CP947F

  • Port size:DN25~600, NPS 1〞~ 24〞
  • Pressure:PN16 ~ 420,150LB ~ 2500LB
  • Medium:Water,oil,steam,gas
  • Temperature :-196~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Connection:Flanged,butt weld is optional
  • Position type:Double acting or single acting
  • Characteristic:Quick open
  • Voltage:
  • Other:Metal seat
  • Pneumatic metal seated ball valve Featue

    Pneumatic metal seated ball valve is a rotary type shut-off valve, and its structure adopts a bidirectional sealing design of a movable seat. The ball of  Pneumatic metal seated ball valve has a large shearing force and self-cleaning function when there is no gap between the two-way sealing seats, and is especially suitable for controlling fibers and suspensions , viscous media or abrasive fluids with fine particles in high temperature, high pressure Oil, Gas, Petroleum, Petrochemical, Chemical, Power Generation, Pulp, Paper and Mining industries.metal seated ball valve can be equipped with Pneumatic actuator, Gas over oil actuator, Electric actuator, Electro-hydraulic actuator to realize the functions of cutting, distributing and changing flow direction.

  • Pneumatic metal seated ball valve Performance

    Size: 1”-24”, DN25-DN600

    Pressure range: Class 150lb-2500lb , PN1.6MPa-PN42.0MPa

    Pneumatic metal seated ball valve Temperature: -46℃~+450℃

    Applicable medium: water, heavy oil, gas and some corrosive liquid

    Pneumatic metal seated ball valve Connection: Flanged, BW

    Body type: straight through

    Ball type: floating or trunnion mounted

    Stem Seal type: self-sealing stuffing box structure, flexible graphite packing structure

    Pneumatic metal seated ball valve Standard leakage class: CLASS V

    Flow characteristic: quick on-off, ESD

    Actuator: Pneumatic piston, Gas over oil, Electric, Electro-hydraulic



    Pneumatic metal seated ball valve Applicable Standards:

    Design: API6D, API608,ASME B16.34, ISO14313, MSS SP-72
    Face to face: ASME B16.10,AP6D
    Flange end: ASME B16.5,ASME B16.47,EN1092, GOST 33259,etc.
    Butt welded end: ASME B16.25
    Leakage standard: ANSI B16.104
    Inspection and test API 598,API6D
