Pneumatic PTFE PFA lined ball valve feature

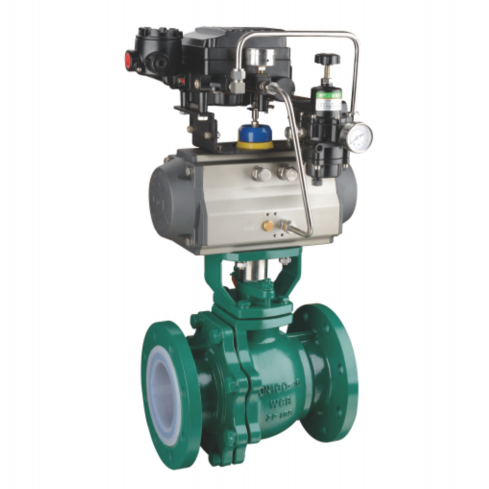

Pneumatic PTFE PFA lined ball valve is PTFE or PFA lined structure, which is used alikali,acid and other corrosive medium , which can fully instead of stainless steel bal valve, Pneumatic PTFE PFA lined ball valve is mounted with pneumatic actuator, achieving in the purpose of automatic control and remote control on the ball valve action.

There are two types of pneumatic actuators mounted with the Pneumatic PTFE PFA lined ball valve, one type is single action pneumatic actuator (which is also called spring return pneumatic actuator); the other type is double action pneumatic actuator. Normally, the clients select the spring return pneumatic actuator, because this type of pneumatic actuator needs only one air supply.

Size	1/2"~12",DN15~DN300
Normal pressure	PN10/PN16 or CLASS 150,Lined structure can not bear high pressure
Design standard	API 608,API 6D, ASME B16.34, MSS SP-72; BS5351,ISO17292,EN13709
Marked	MSS SP-25
Fire safe design	API607,API 6FA
End flange	ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129
Face to Face	ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752
Top flange	ISO 5211
Test standard	API598,API6D;DIN3230, EN12266,ISO 5208
Suitable temperature	-29~150°C
Medium	acid, alkali, aqua wang or other corrosive medium etc.
Acidic environment	NACE MR0175
Operation	Pheumatic Actuated:Single action,double action or regulating type Handwheel for manual operation is optional

Nominal diameter DN（mm）		25	40	50	65	80	100	125	150	200	250	300
Rated flow coefficient Cv	Full chamber type	14	30	55	100	135	230	320	500	850	1300	1750
Rated flow coefficient Cv	Shrinkage chamber type	6	12	20	40	54	92	128	200	340	520	700
Double action pneumatic actuaror		Air supply pressure 400KPa
Model	Torque（N.M）	PTFE packing , metal seal allow differential pressure
ATD63	23.5	2.35	0.94
ATD75	46.5	5.0	2.84	1.49	0.57	0.33
ATD88	73.2			2.39	0.99	0.62
ATD100	106				1.54	0.99	0.30	0.19
ATD125	221						1.29	0.80	0.39
ATD160	453						2.84	1.79	0.89	0.47	0.26	0.14
Single action pneumatic actuator		Air supply pressure 400KPa
Model	torque（N.M）	PTFE packing , metal seal allow differential pressure
ATS75	26.5	0.19
ATS88	44	1.19	0.09
ATS100	60.7	3.97	1.59	0.81	0.11
ATS125	126			2.19	0.89	0.59
ATS160	269					1.39	0.53	0.34
ATS200	467						2.84	1.79	0.89	0.47	0.26	0.14
