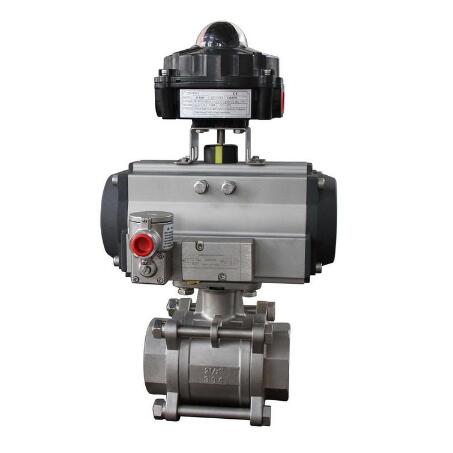

Stainless Steel 2PC 3PC Pneumatic Thread Ball Valve specification:

1. Actuator type: Double acting or single acting pneumatic actuator

2. Ball valve size: 1/4"~4"

3. Thread standard: BSPT

4. Fluid: Air, Water, steam, water treatment

5. Pressure class: 1000 WOG or 2000 WOG

6. Structure:2 PC or 3 PC


Stainless Steel 2PC 3PC Pneumatic Thread Ball Valve  Actuator introduction:
1.Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.
2.The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can  provide low coefficient of friction, smooth performance and a long service life.
3.All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
4.The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both  open and closed directions.
5.Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
6.Pre-compressed load springs are convenient for safe mounting and disassemble operations.
7.Die-casted aluminum pistons and end caps are high strength and light weight.
Optional Viton and Silicone seals are available for low and high temperature applications.

Stainless Steel 2PC 3PC Pneumatic Thread Ball Valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
