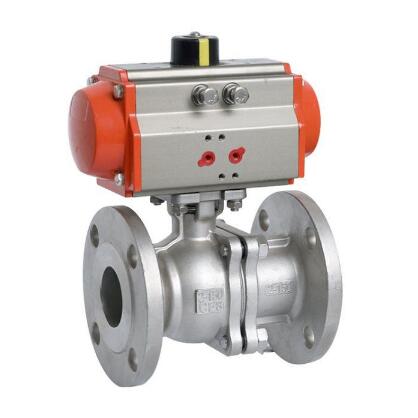

2PC High Platform Flange Pneumatic Ball Valve

Model:

  • Port size:1/2'' ~ 4''( 15mm ~ 100mm)
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB CF8 CF3 CF8M CF3M or others
  • Connection:Flange
  • Position type:single-acting(FO,FC),double-acting (FL)
  • Characteristic:High platform direct installation
  • Voltage:/
  • Other:Different accessories is optional
2PC High Platform Flange Pneumatic Ball Valve specification:

1. Actuator type: Double acting or single acting ppneumatic actuator

2.  2PC High Platform Flange Pneumatic Ball Valve size: 1/2"~4"

3.  2PC High Platform Flange Pneumatic Ball Valve Connection: Flange type

4. Fluid: Air, Water, steam, water treatment

5. Pressure class: PN16,PN25,PN40,PN64,PN100;CL150,CL300,CL600

6. Structure:2 PC,Floating structure

7.High platform for direct installation


2PC High Platform Flange Pneumatic Ball Valve Actuator introduction:
1.Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.
2.The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can  provide low coefficient of friction, smooth performance and a long service life.
3.All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
4.The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both  open and closed directions.
5.Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
6.Pre-compressed load springs are convenient for safe mounting and disassemble operations.
7.Die-casted aluminum pistons and end caps are high strength and light weight.
Optional Viton and Silicone seals are available for low and high temperature applications.

2PC High Platform Flange Pneumatic Ball Valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer

2PC High Platform Flange Pneumatic Ball Valve
