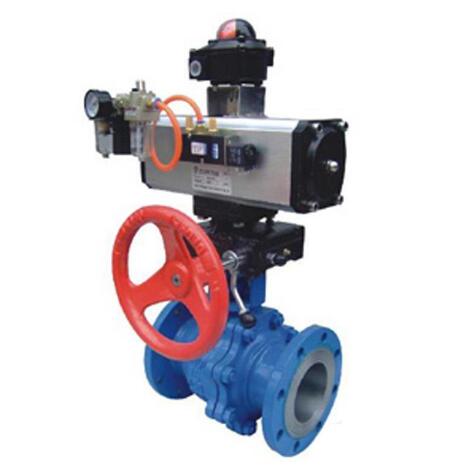

Pneumatic carbon steel flange ball valve with side handwheel introduction:
Pneumatic carbon steel flange ball valve with side handwheel is mainly composed of floating ball valve, pneumatic actuator and related accessories. Pneumatic carbon steel flange ball valve with side handwheel body adopts the silicon dissolves the tumble precision casting. Pneumatic carbon steel flange ball valve with side handwheel has the high platform design. Through the compressed air as the power source, we may control the ball valve to open and close. Pneumatic carbon steel flange ball valve with side handwheel overall structure is compact, switch quickly, which is equipped with electrical valve positioner, receive 4-20 mA control signal of industrial automation control system, to complete the adjustment of pipeline medium flow, pressure, temperature and other technical parameters, to achieve automatic control.
Pneumatic carbon steel flange ball valve with side handwheel advantage:
1. Pneumatic carbon steel flange ball valve with side handwheel adopts the floating straight structure. The ball valve body channel and the connecting pipe diameter are equal and form a diameter. The medium can flow almost without loss;
2. Pneumatic carbon steel flange ball valve with side handwheel with the purification of dry compressed air as the power source, it can be used as a switch truncation function and a flow regulation function. It has the characteristics of simple operation, good reliability and so on.
3. There is no connection of bracket and connecting shaft between pneumatic actuator and ball valve. Different body and seat material can be applied to different working conditions in the medium.
4. The actuator of Pneumatic carbon steel flange ball valve with side handwheel can attach signal feedback indication and various accessories to achieve the needs of automatic operation.
Pneumatic carbon steel flange ball valve with side handwheel technical specification:
| Nominal Diameter |
DN15-400mm |
| Nominal Perssure |
PN1.6MPa;2.5MPa;4.0MPa;6.4MPa |
| Type of Connection |
Flange |
| Driving Type |
Pneumatic,Manual |
| Working Temperature |
Soft seal: -30~+180ºC; metal-to-metal:-40~+450ºC |
| Body Material |
Carbon steel(WCB),Stainless steel(CF8,CF83,CF3,CF3M) |
| Seat Material |
PTFE,H,Y |
| Mode of Action |
Single action(spring return),Double Action(normal open&normal close) |
| Control Type |
Adjust type; On-off type |
| Accessory |
Solenoid valve, positioner, limit switch,
manual mechanism |
| Application range |
Water, oil, gas, corrosive media, etc |
| Features |
It has ompact structure, large flux, quick switching, and wide application range. |
Pneumatic carbon steel flange ball valve with side handwheel accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
