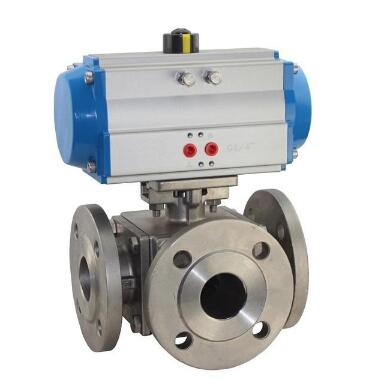

304 304L 316 316L Pneumatic three way ball valve Featue:

304 304L 316 316L Pneumatic three way ball valve is divided into L port pneumatic 3 way ball valve and T port pneumatic 3 way ball valve.Pneumatic L port 3 way ball valve is used for the direction switch of medium flow, enabling two channels that are vertical to each other connect.304 304L 316 316L Pneumatic three way ball valve is used for diversion,convergence and flow direction switch of medium.304 304L 316 316L Pneumatic three way ball valve is widely used in water supply,petrochemical,metallurgy,mining,textile,energy, papermaking,food,steel and other pipeline systems to switch the flow direction of the medium and to divert or converge.

304 304L 316 316L Pneumatic three way ball valve Performance:

Type of Pneumatic Actuator	Double Acting/Single Acting
Air Supply Pressure	Double Acting：2-8bar / Single Acting：4-8bar
Output Torque	Double Acting：4N·M～10560N·M
	Single Acting：7N·M～2668N·M
Working Temperature	Normal temperature type：-20℃～80℃（Nitrile rubber O-ring）
	High temperature type：-20℃～160℃（Fluorocarbon O-ring）
Range of motion	0～90°±5°
Interface thread	ATD50～ATD88    G1/8″
	ATD100～200   G1/4″
Valve position signal	Positioner:4~20mA;                        Limit Switch：full open/full close signal

304 304L 316 316L Pneumatic three way ball valve Technical parameter:

Nominal diameter:DN15~DN50;
Nominal pressure:PN1.6,PN2.5,PN4.0,PN6.4;
Connection type:female thread;
Action range:0~90°；
Body material: stainless steel 304/316/316L;
Ball material:stainless steel 304/316/316L;
Seat seal:PTFE,PPL,metal seal;
Application temperature: PTFE≤180°C, PPL≤350°C, metal seal≤450°C;

304 304L 316 316L Pneumatic three way ball valve accessories:
