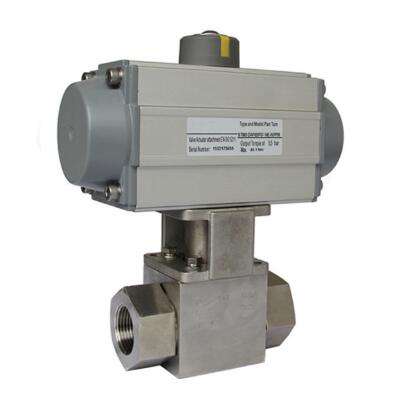

High pressure pneumatiac thread ball valve introduction:
High pressure pneumatiac thread ball valve is composed of thread type forged high pressure ball valve and pneumatic actuator, the working pressure from PN64 to PN420,Class 300 to Class 2500. The High pressure pneumatiac thread ball valve body material is treated with hard and anti-corrosive treatment, which improves the strength of the valve body and has the advantages of excellent pressure resistance and wear resistance.High pressure pneumatiac thread ball valve adopts three-stage valve body, which makes the structure more compact and easy to assemble.High pressure pneumatiac thread ball valve is suitable for hydraulic oil, water, high-pressure gas and other media.High pressure pneumatiac thread ball valve can be equipped with valve positioner to input 4-20ma analog signal to control the opening size of ball core operation, and achieve proportional adjustment of medium pressure, flow, temperature and other parameters.

High pressure pneumatiac thread ball valve application:
1. The High pressure pneumatiac thread ball valve body is made by forging process, which improves the strength of the material and avoids defects such as blowhole and trachoma of the casting.
2. The sealing ring is made of nylon material, which bears higher pressure than teflon, has a long service life and good sealing.
3. High pressure pneumatiac thread ball valve can maintain the pressure uniformity of valve structure even under the maximum working pressure.
4. High pressure pneumatiac thread ball valve is widely used in chemical industry, petroleum, natural gas, metallurgy, and other industries, as well as natural gas long-distance transportation pipelines with hydrogen sulfide medium, many impurities and serious corrosion.

High pressure pneumatiac thread ball valve performance:

Pneumatic Actuator Parameters		Pneumatic Operated On Off Ball Valve Parameters
Actuator Type	single-acting(FO,FC), double-acting (FL)	Nominal Diameter	DN15～200mm
Air Supply Pressure	double-acting：2-8bar;   single-acting：4-8bar	Nominal Pressure	PN10~32Mpa（900~2500LB）
Output Torque	double-acting：4N·M～10560N·M	Valve Stem	Forged stainless steel
	single-acting：7N·M～2668N·M	Body Material	F304,F316,F316L,etc.
Working Temperature	Normal temperature type： -20℃～80℃（Nitrile rubber O-ring）	Valve Ball	F304,F316,F316L,etc.
	High temperature type： -20℃～160℃（Fluorocarbon O-ring）	Seat Seal	PEEK,Metal seat
Action Range	0～90°±5°	End Connnection	flange type
Interface thread	GTD40～GTD83/ATD50～ATD88    G1/8″	Application Medium	Water,steam,oil,gas
	GTD110～GTD350/ATD100～200   G1/4″
Valve position signal	Positioner:4~20mA;                       Limit Switch:full open/full close signal	Feature	flexible open & close and reliable sealing

High pressure pneumatiac thread ball valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
